RTRC CONDUIT
Reinforced Thermosetting Resin Conduit (RTRC) Thailand’s first epoxy fiberglass conduit manufacturer, certified to NEMA TC-14 and TIS standards.
Product overview
Reinforced Thermosetting Resin Conduit RTRC
High-performance composite conduit engineered for underground and infrastructure cable protection applications. Manufactured from reinforced thermosetting resin with fiberglass reinforcement, providing superior mechanical strength, corrosion resistance, and long-term durability.
Compliant with NEMA TC14 and TIS 2518-2557 standards. Available in sizes from 1 1/4” to 6”, with lightweight construction, excellent impact resistance, UV protection, and operating temperature range from -40°C to 110°C.
Key performance characteristics
Built for long-term cable protection.
Performance comes from the epoxy matrix, continuous E-glass reinforcement, controlled filament winding and smooth internal surface.
Compressive Strength
> 2800 lbs/ft (HW Type)
Temperature Resistance
-40°C to 110°C
Chemical Resistance
Resistant to acids, alkalis, moisture.
UV Resistance
Carbon black / UV stabilizer enhanced.
Coefficient of Friction
Low (smooth inner bore)
Shape Recovery
Retains geometry after deformation.

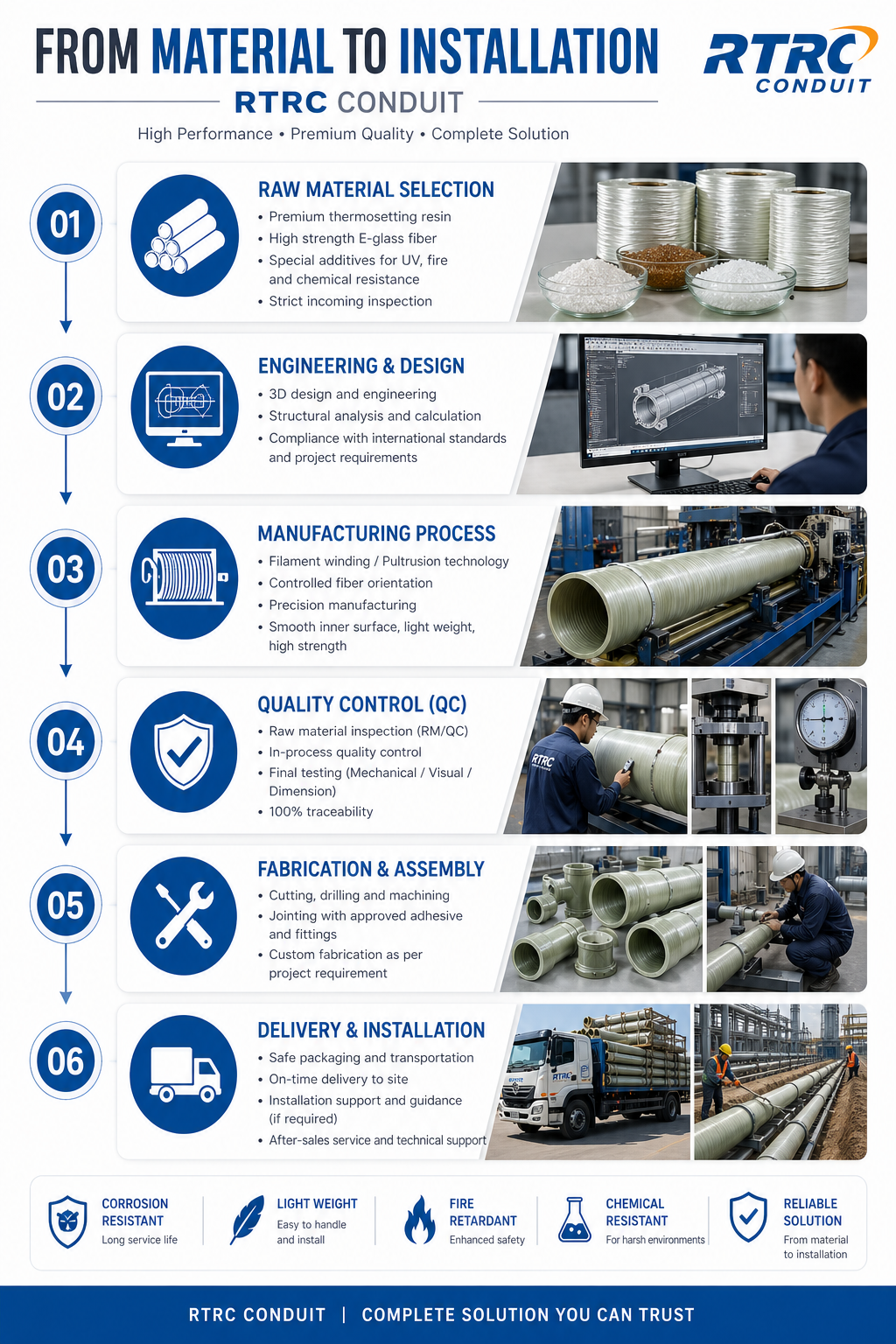

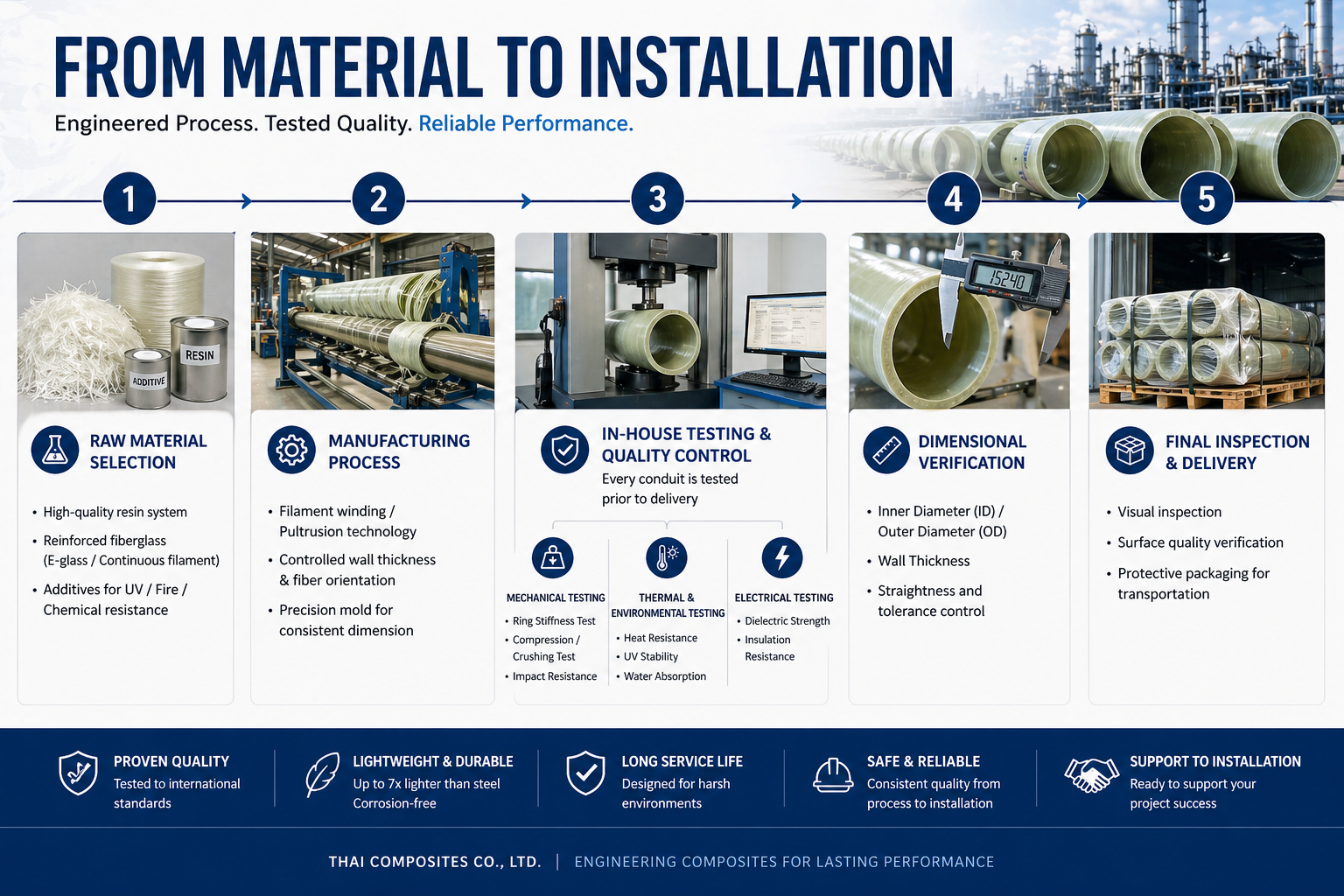

From Material To Installation
Controlled manufacturing from fiber to final release.
High Performance • Premium Quality • Complete Solution

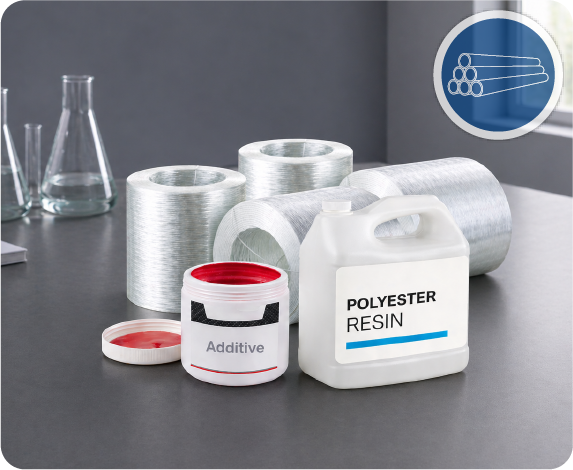

Raw Material Selection
Premium thermosetting resin High strength E-glass fiber Special additives for UV, fire and chemical resistance Strict incoming inspection

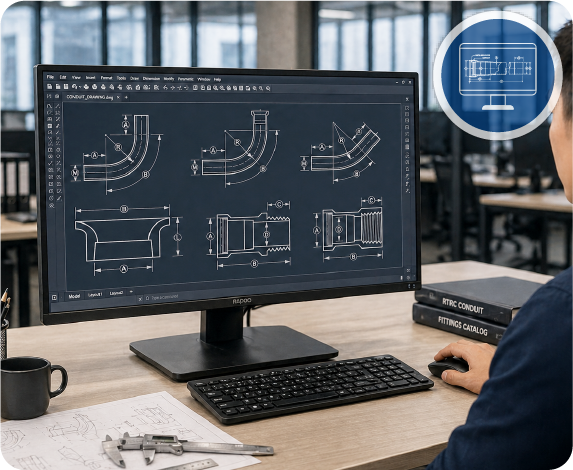

Engineering & Design
3D design and engineering Structural analysis and calculation Compliance with international standards

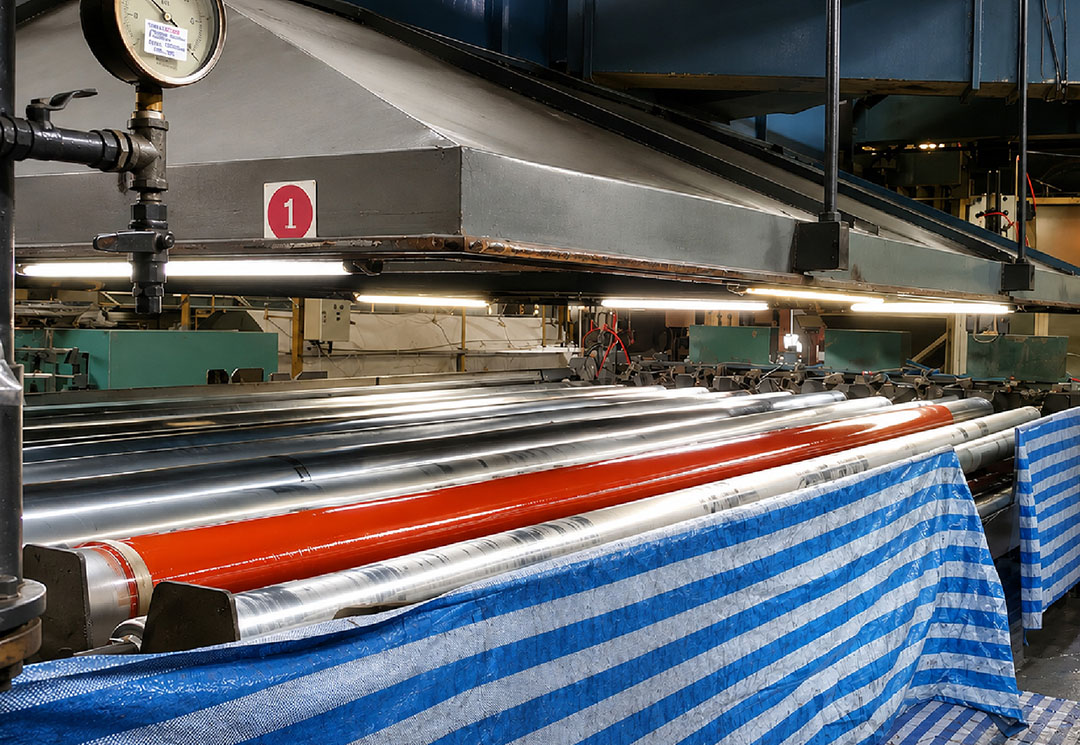

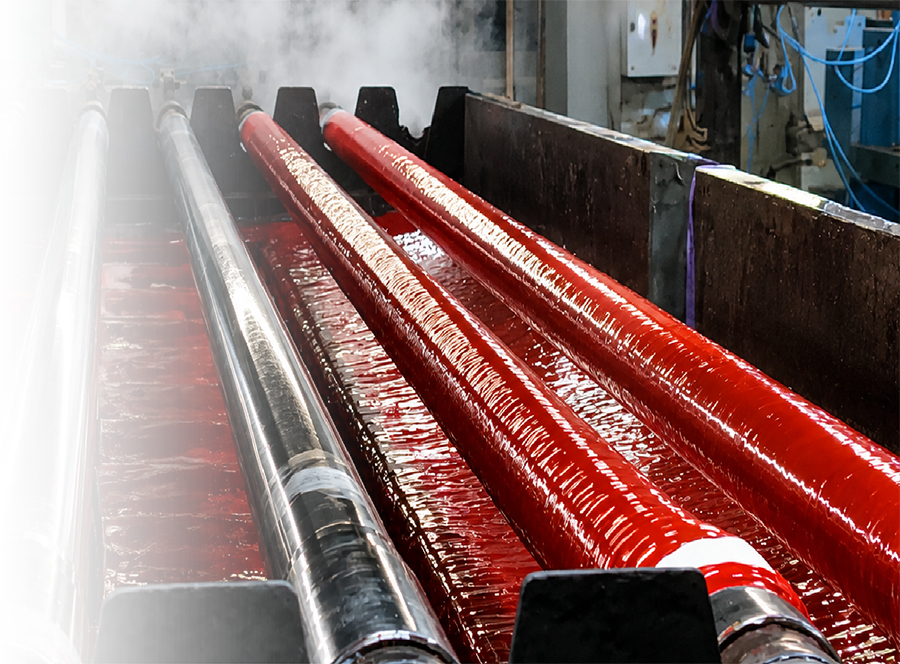

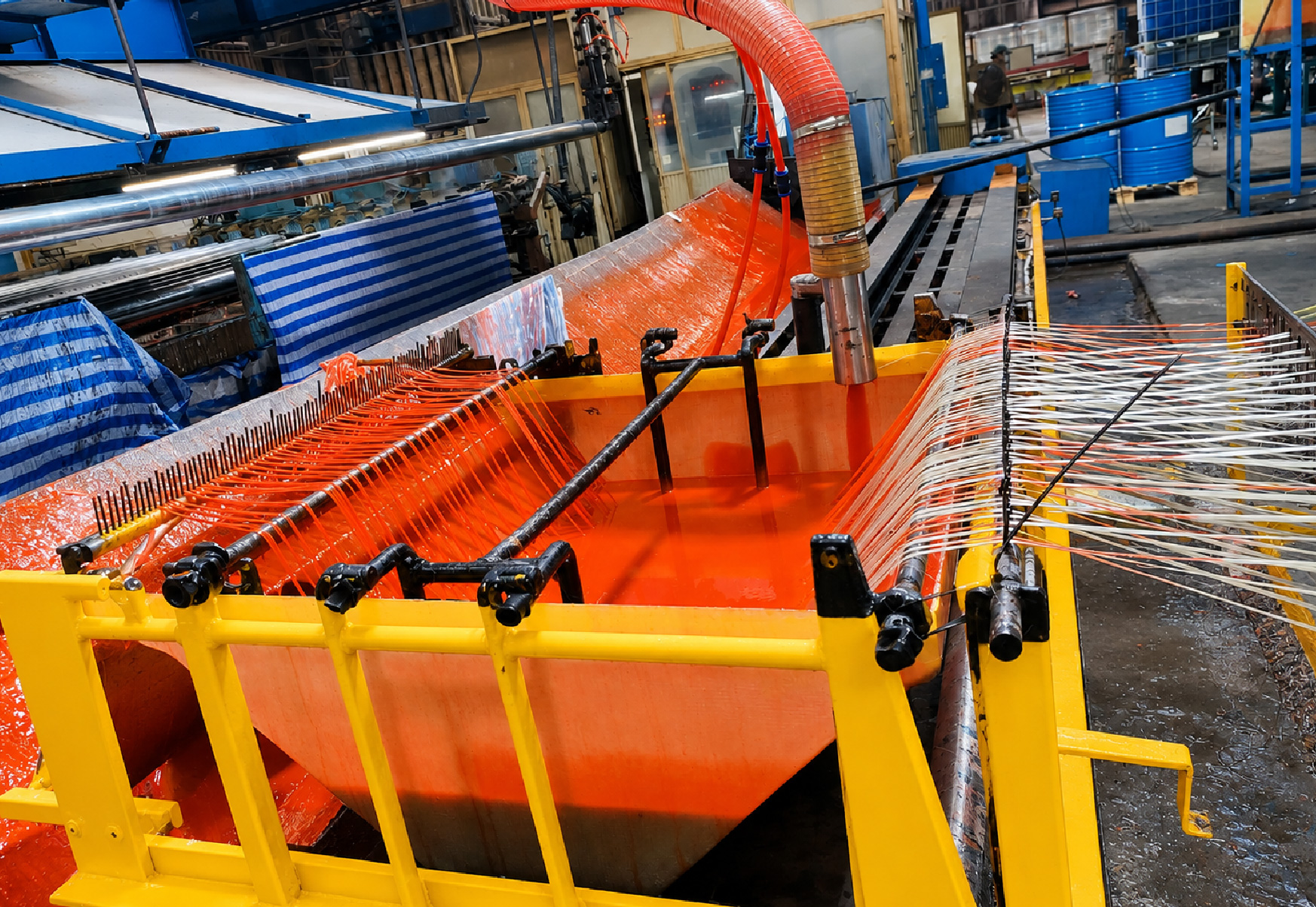

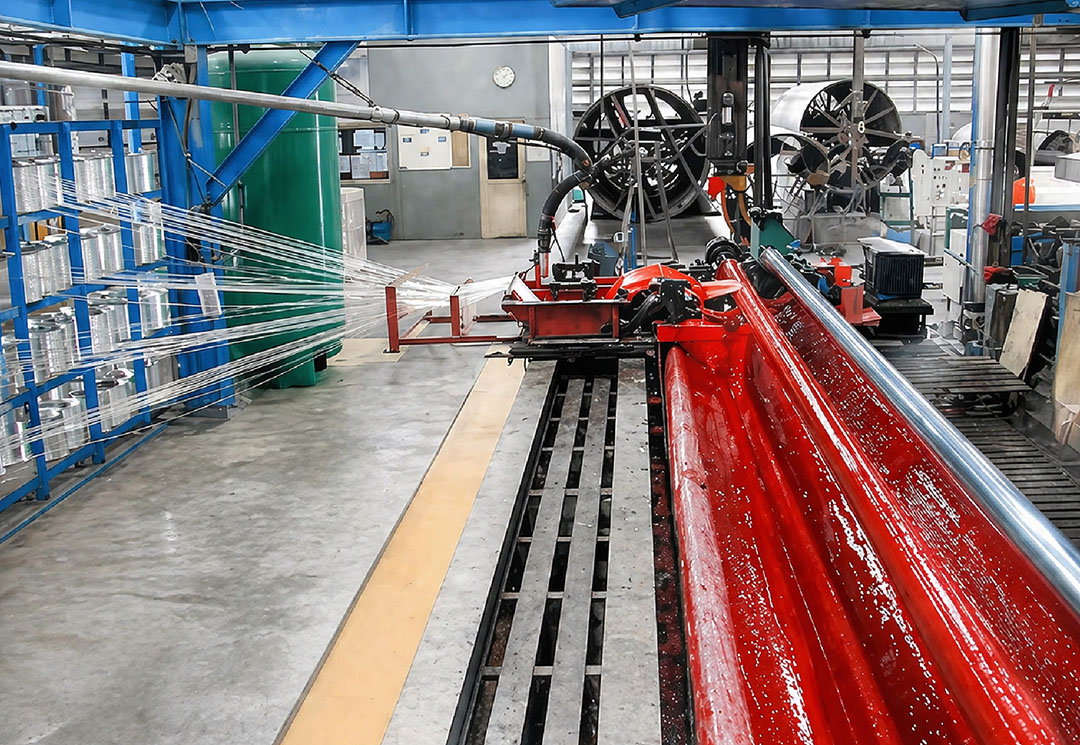

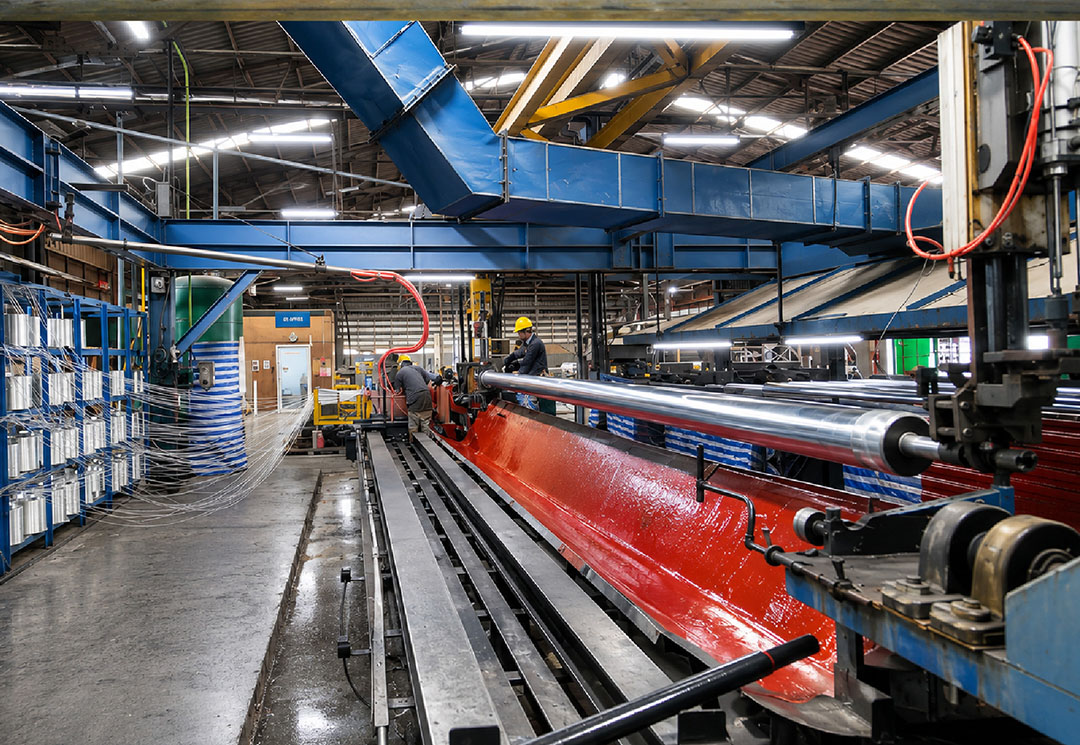

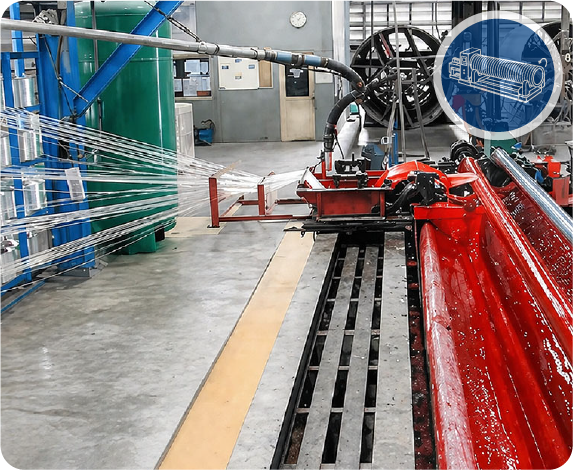

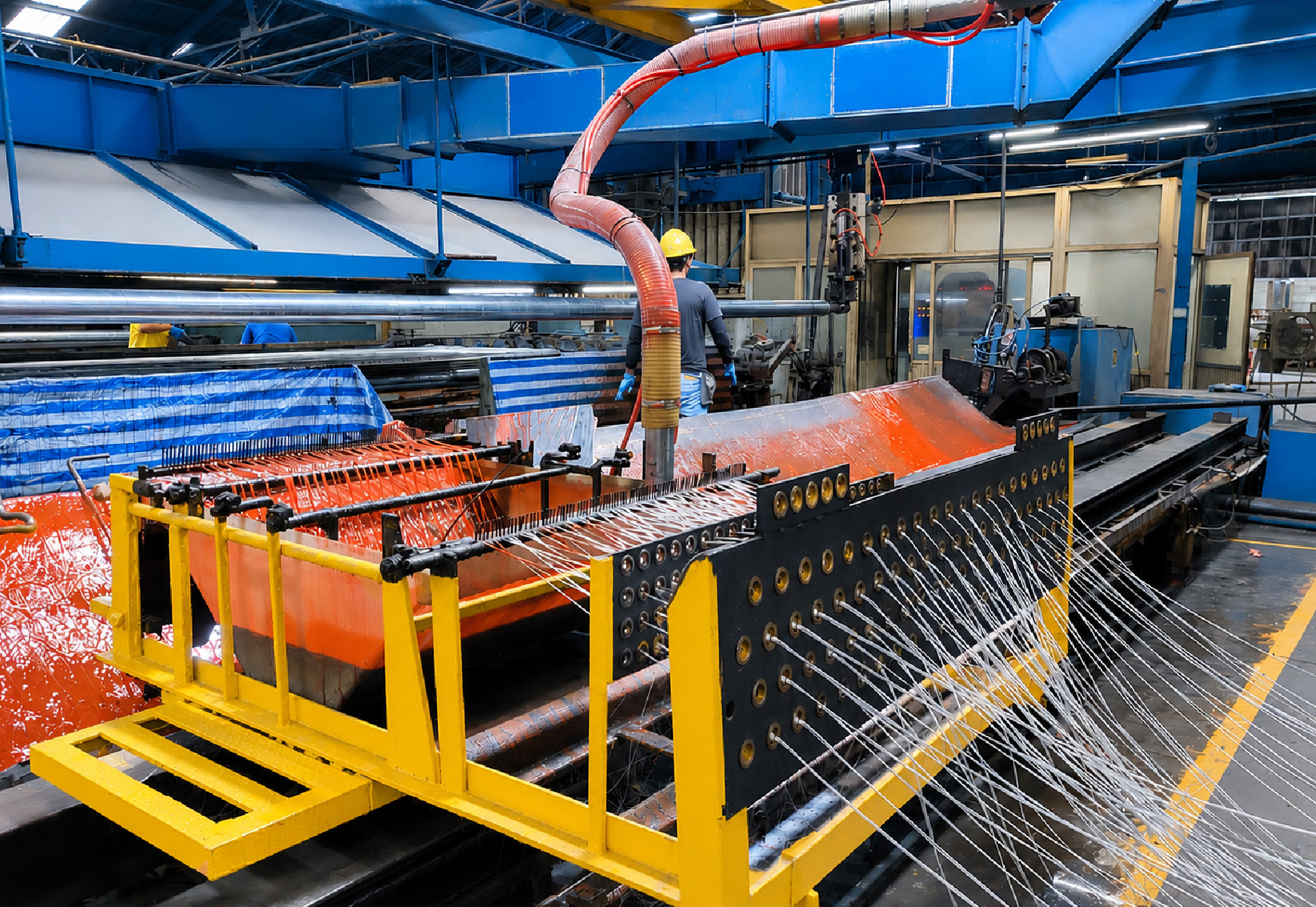

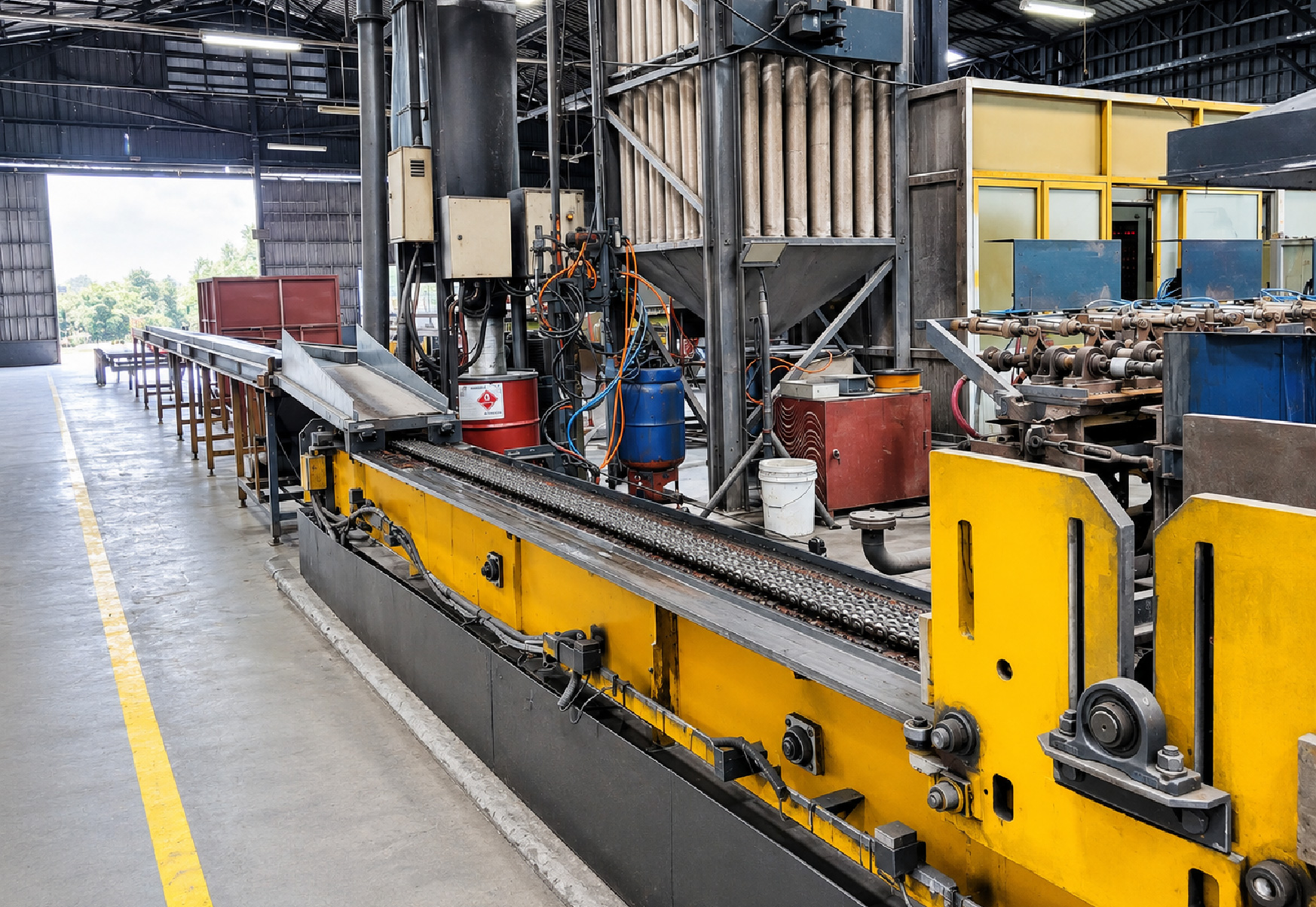

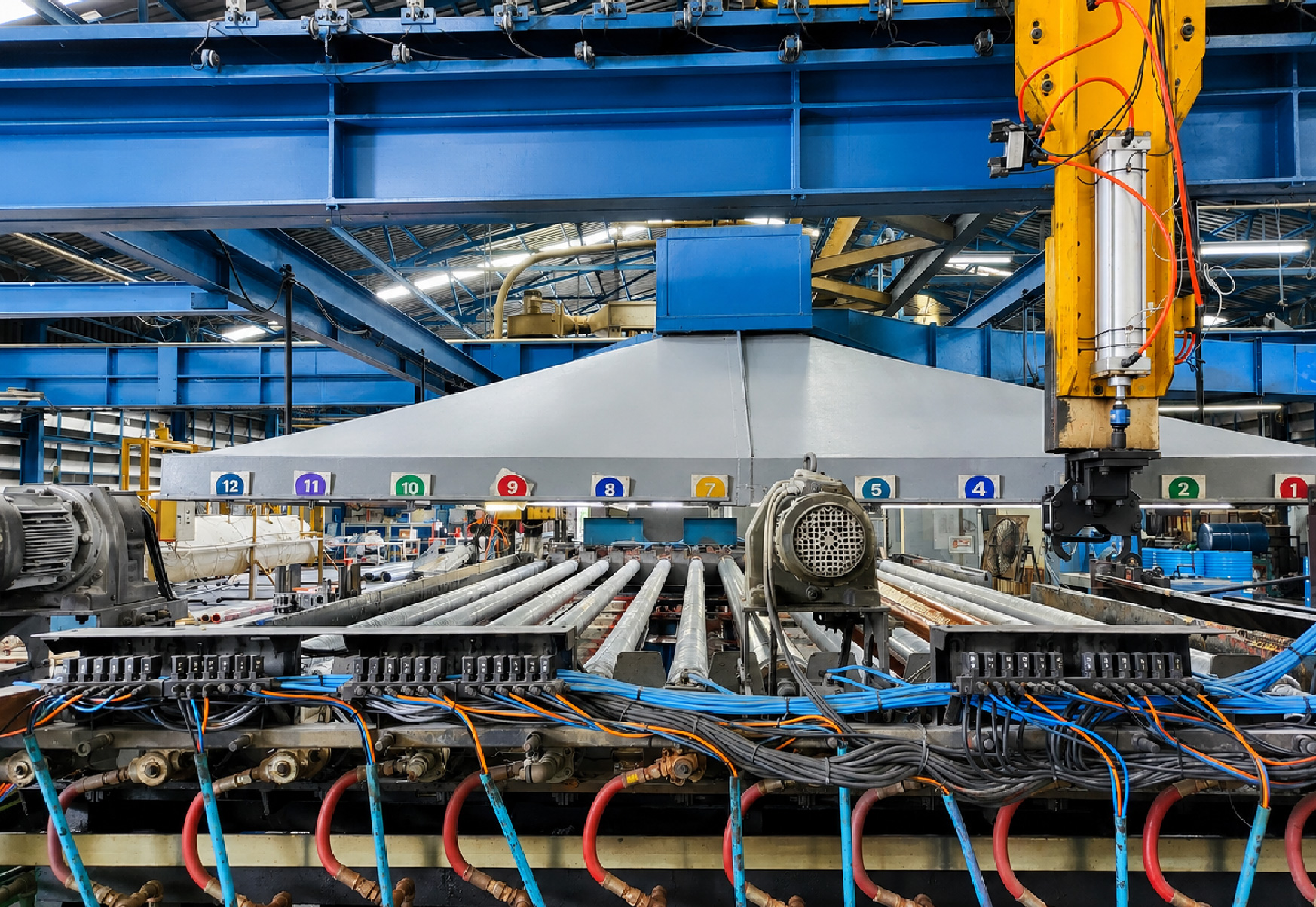

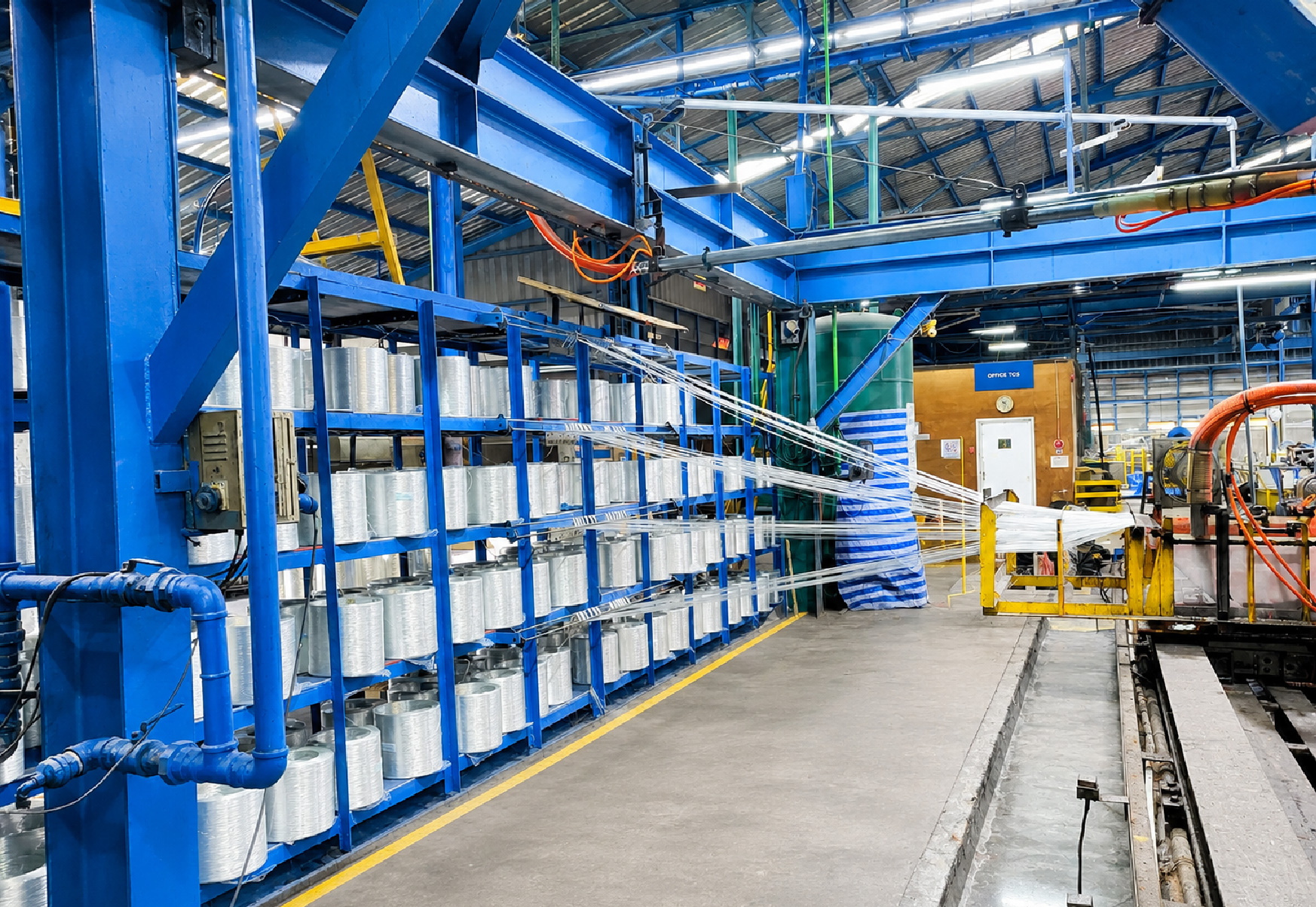

Manufacturing Process
Filament winding / Pultrusion technology Controlled fiber orientation Precision manufacturing Smooth inner surface, light weight, high strength

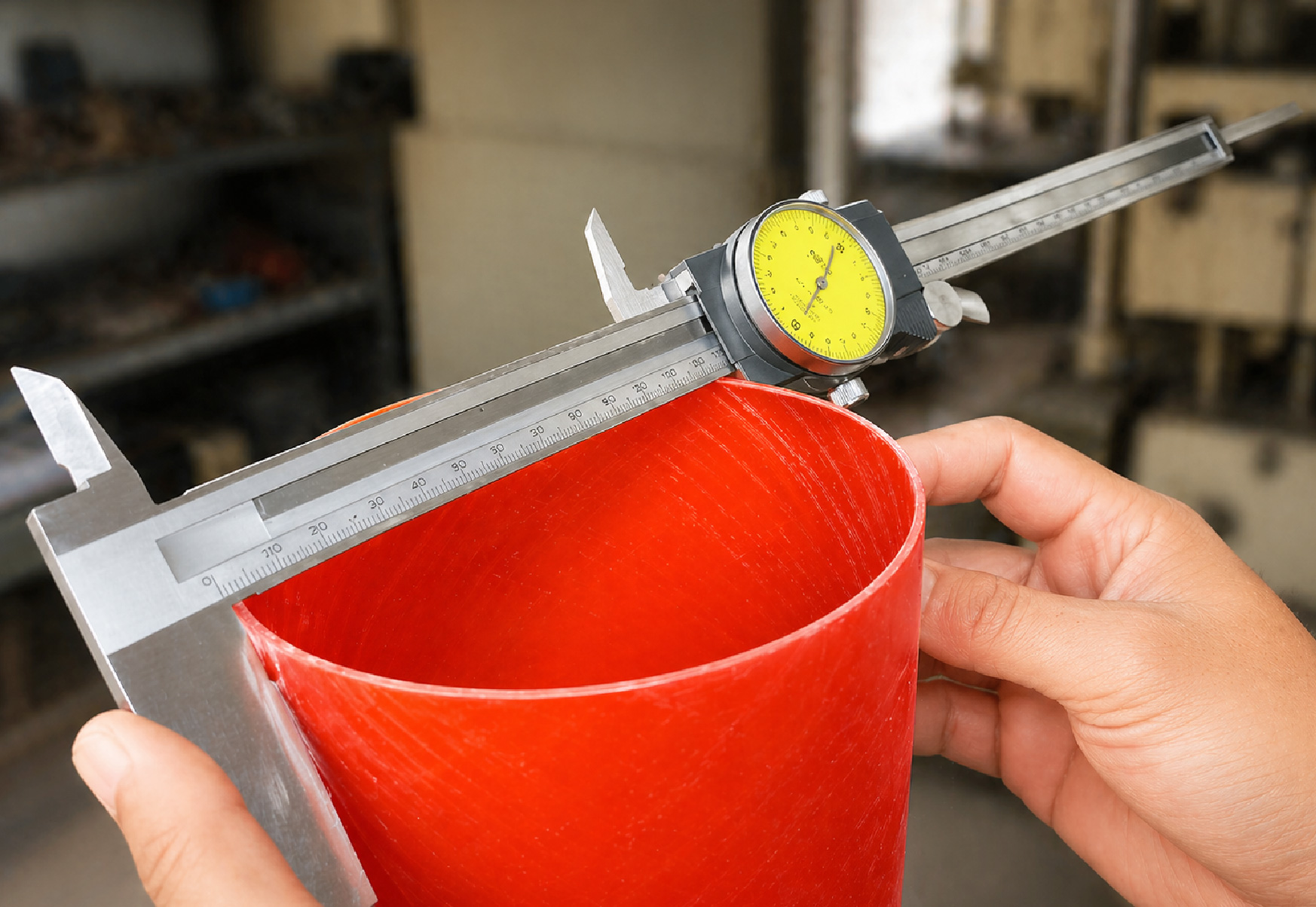

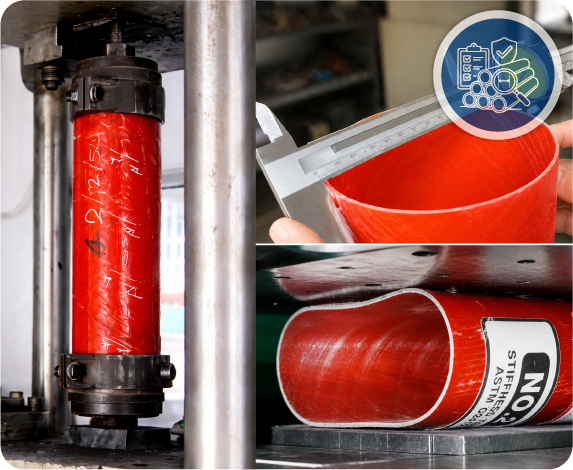

Quality Control (QC)
Raw material inspection (RM/QC) In-process quality control Final testing (Mechanical / Visual / Dimension) 100% traceability

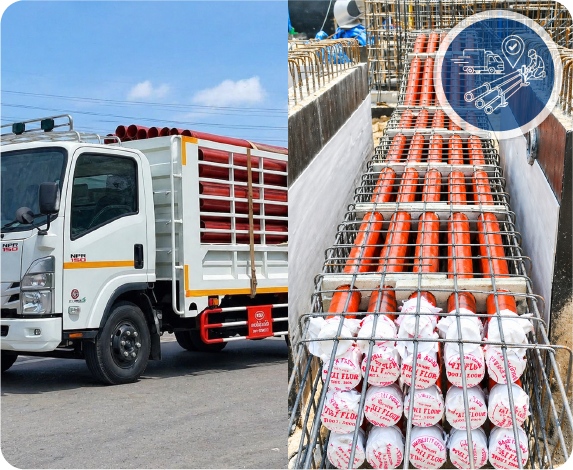

Delivery & Installation
Safe packaging and transportation On-time delivery to site Installation support and guidance (if required) After-sales service and technical support
Compliance & Standards
Our RTRC conduits are designed and tested in accordance with internationally recognized standards to ensure the highest level of safety, quality, and reliability in every installation.
Joint Pullout Test
ASTM D2412
Tensile Test
ASTM D2105
Impact Test
ASTM D2444
Stiffness Test
ASTM D2412
Fire Resistance Test
UL 94
Water Absorption Test
UL 1684
Testing Method
JOINT PULLOUT TEST UNDER ASTM D 2105
Standard : > 453.70 kg. or 1,000 lbs.
TENSILE TEST UNDER : ASTM D 2105
Standard : > 62.05 MPa

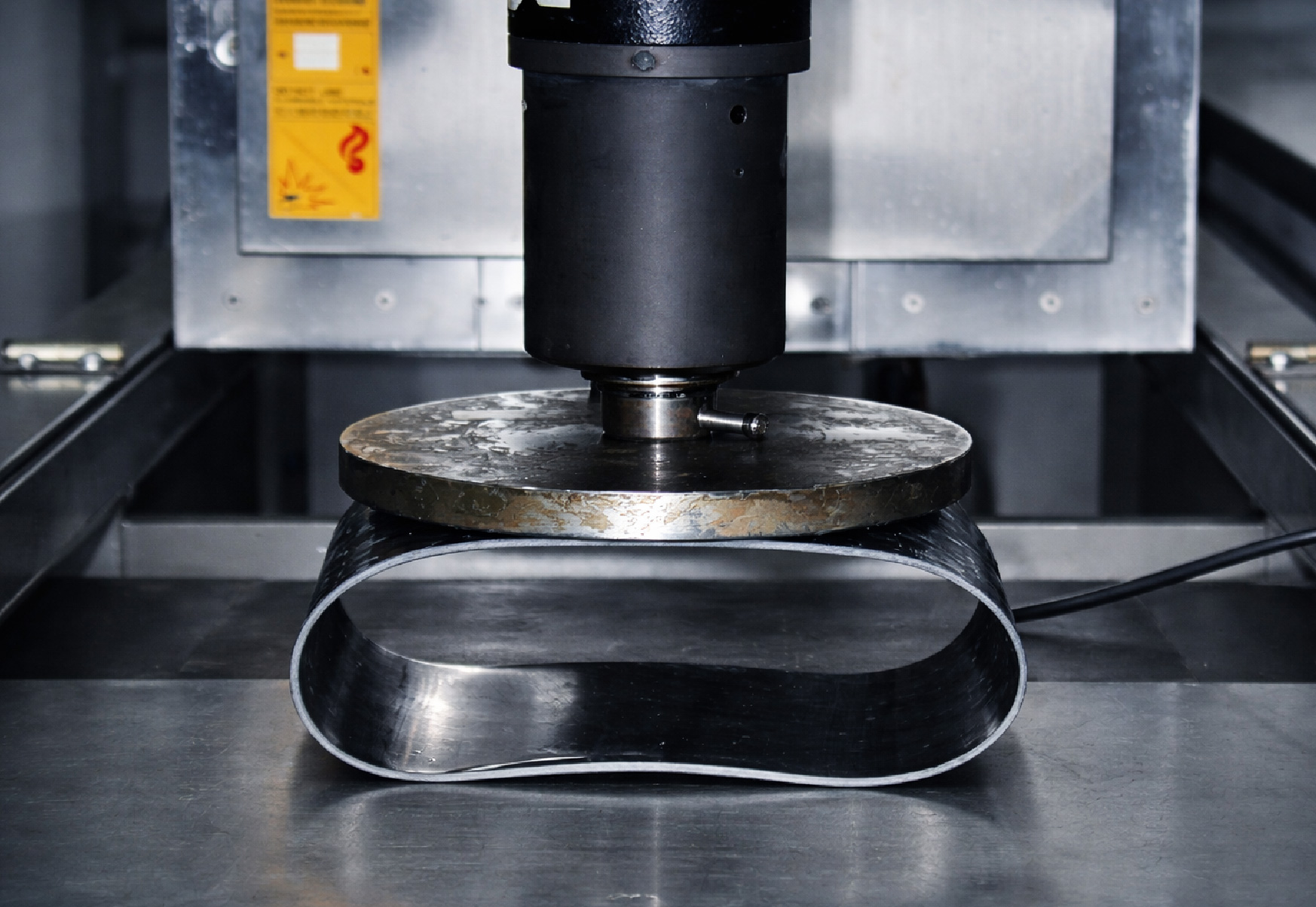

STRIFFNESS TEST UNDER ASTM D 2414
Standard : >151.7 KPa ( 5 inch )
HEAT DISTORTION TEST (HDT) UNDER ASTM D648
Standard : No deformation at 102 °C at 264 psi
IMPACT TEST UNDER ASTM D 2444
Standard : No crack or any damage at 70 ft. lbs (5” SW type)
FIRE RESISTANCE TEST Under UL94
Standard : Not more than 75 mm./ minute.
TIGHTNESS OF JOINT TEST UNDER UL 1684
Standard : No leakage at joint within 24 hours.
WATER ABSORPTION TEST UNDER UL 1684
Standard : <0.25% of its weight ( 5 inch )
Complete conduit system
Conduits, fittings and accessories.
A broad component range supports straight runs, changes in direction, transitions and installation interfaces.

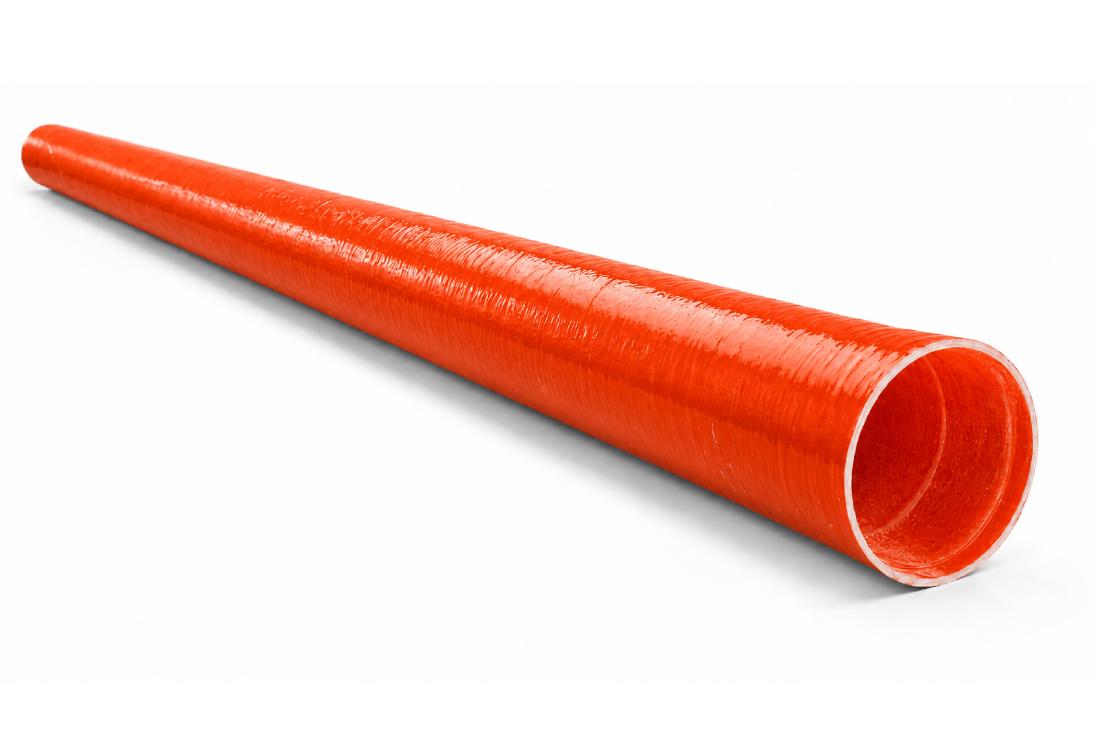

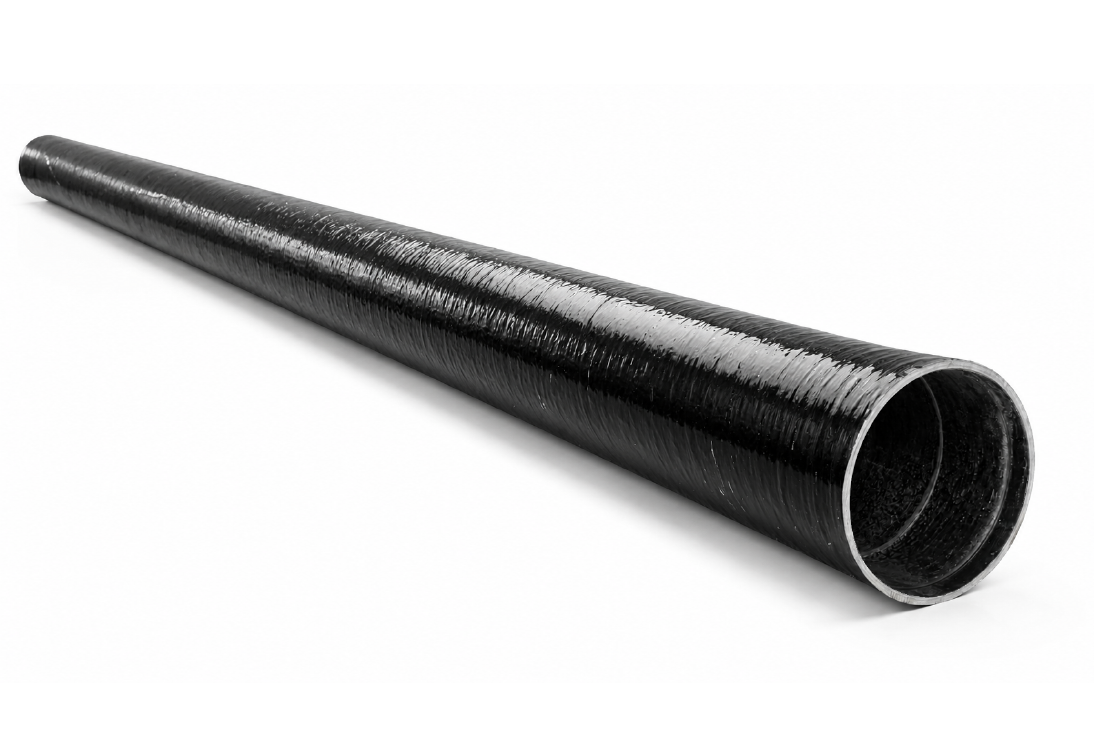

HW and SW Conduit Types
Red and black conduit options are shown in the supplied page, supporting project-specific identification, construction and outdoor requirements.

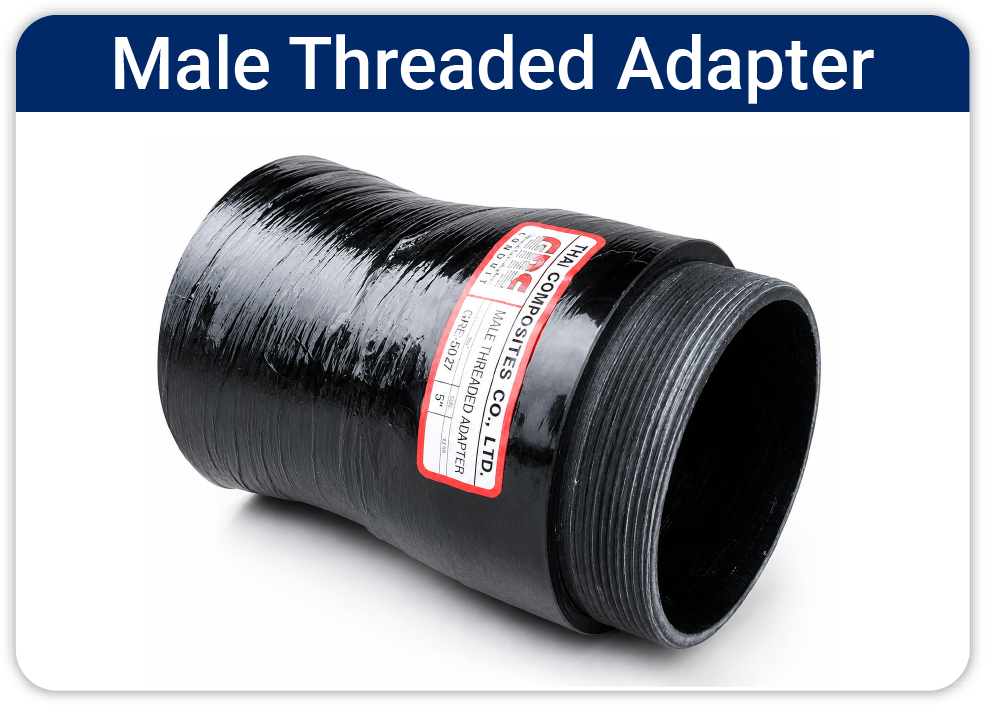

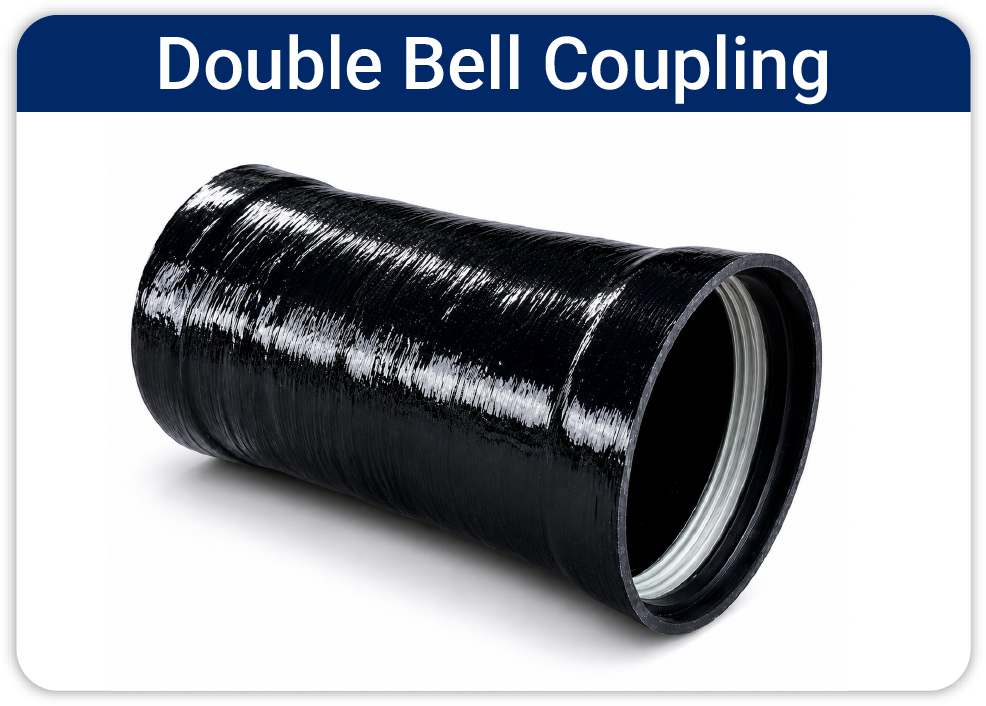

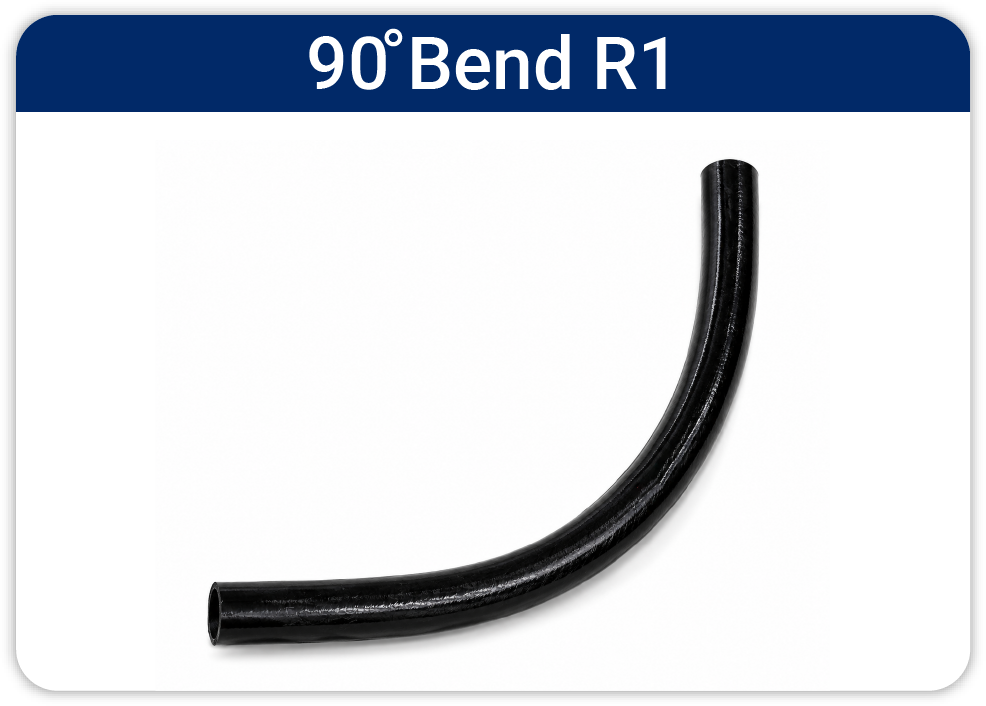

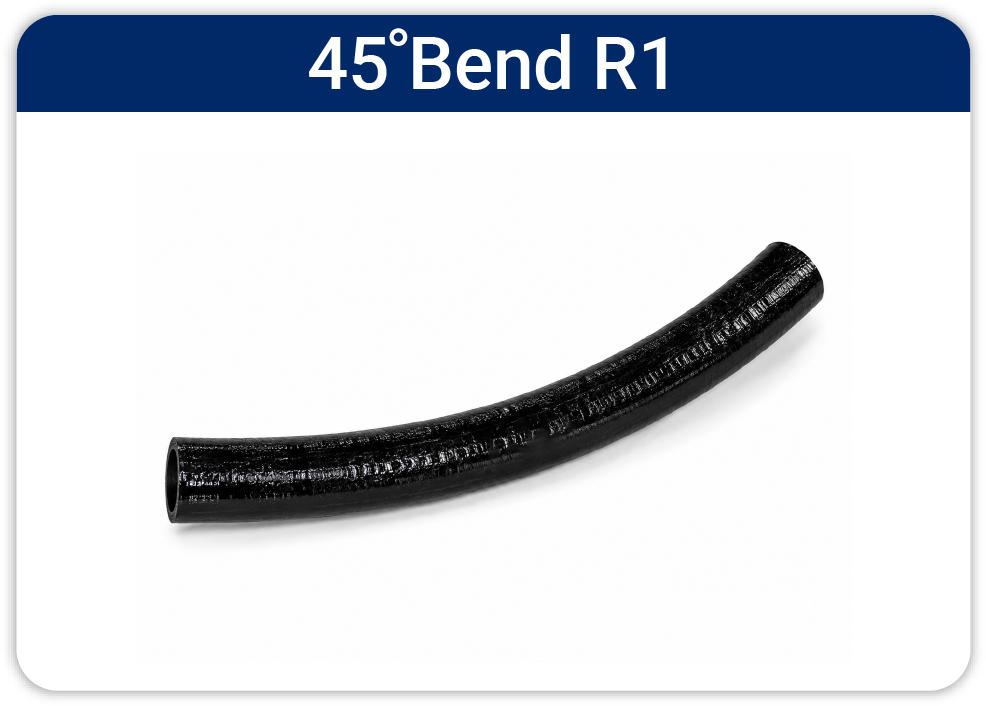

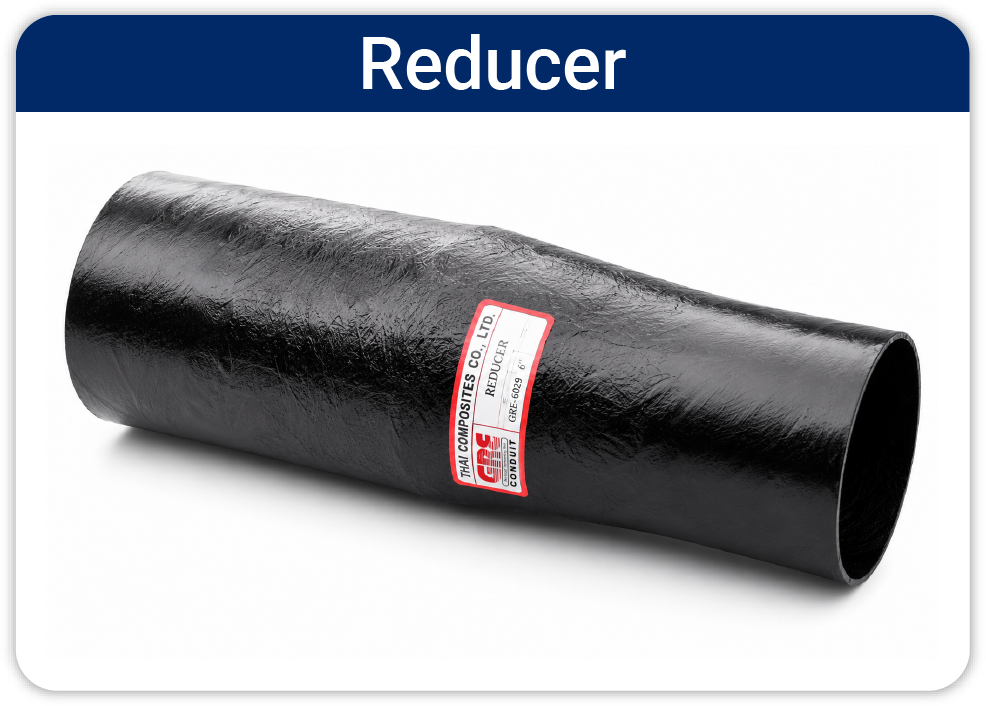

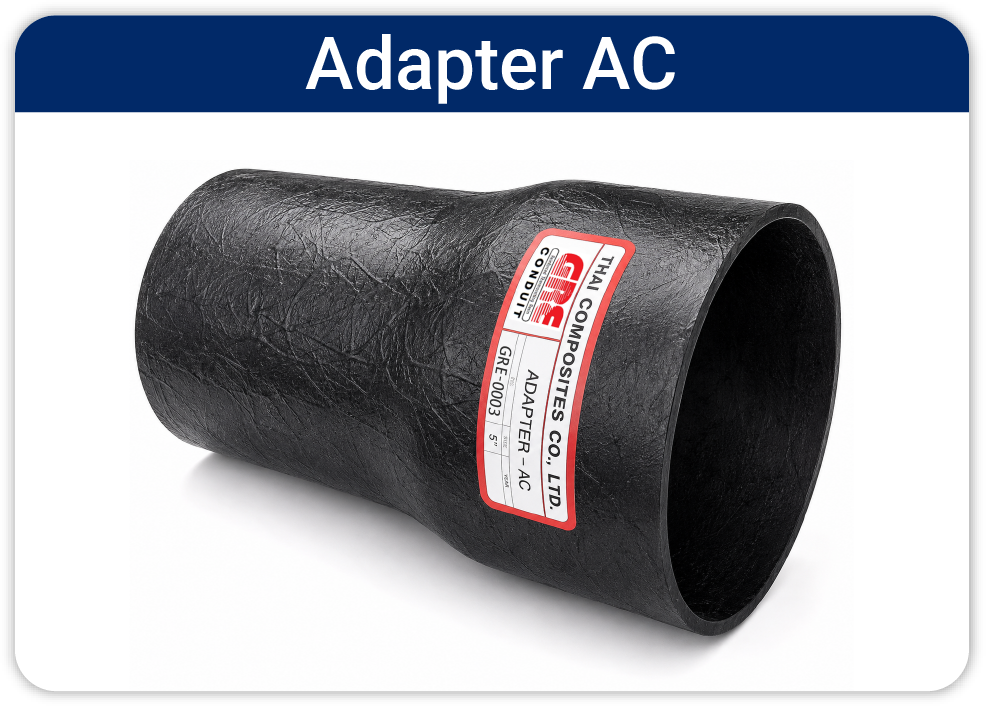

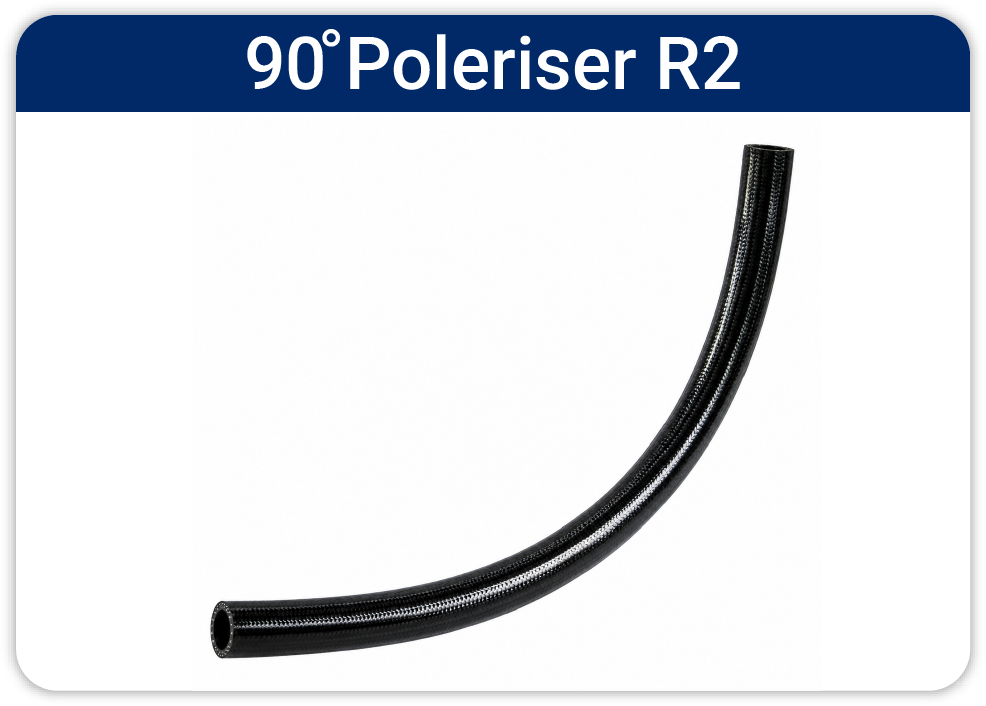

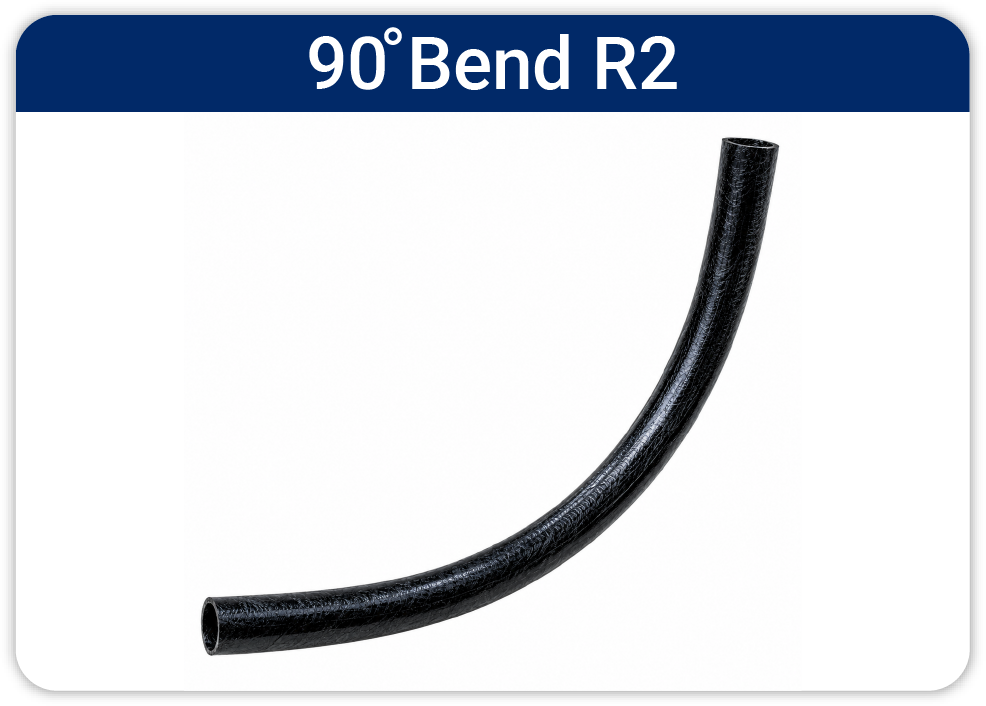

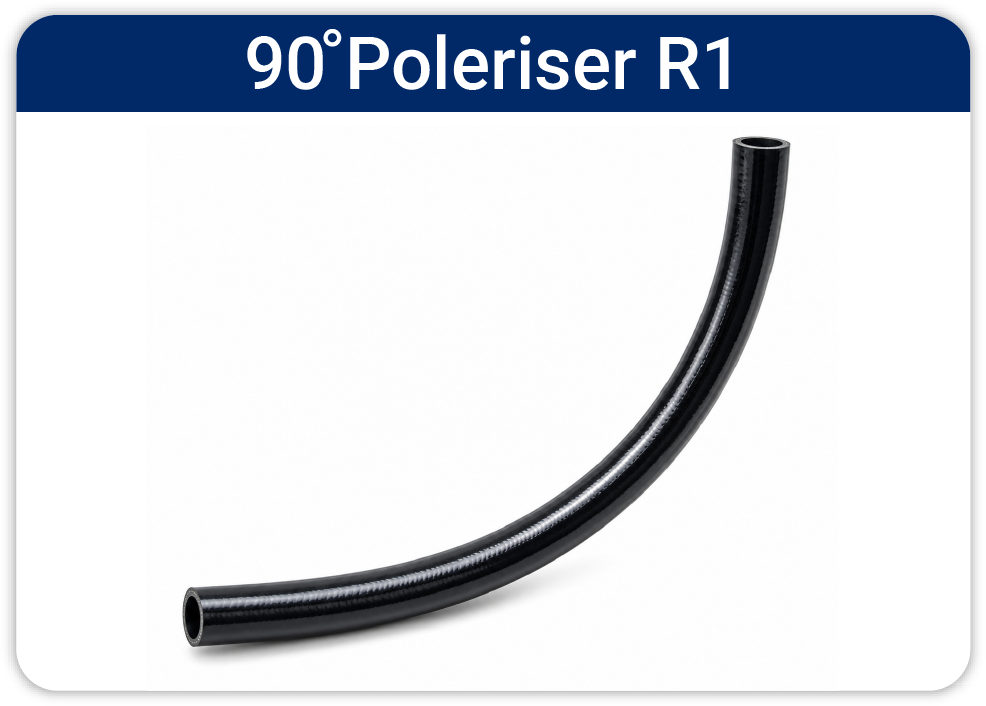

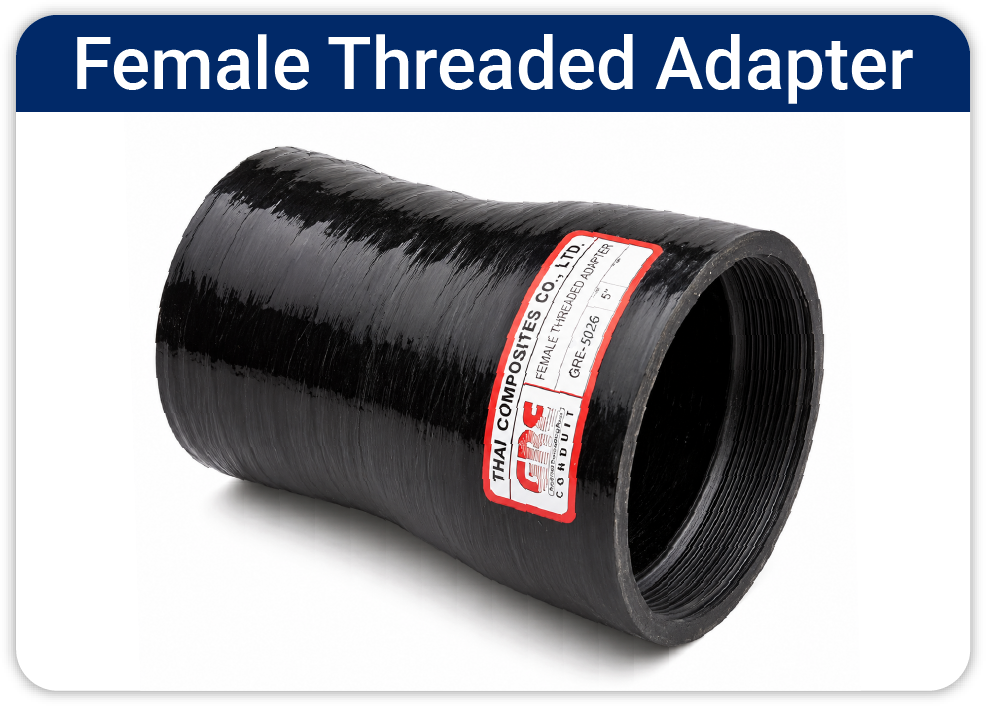

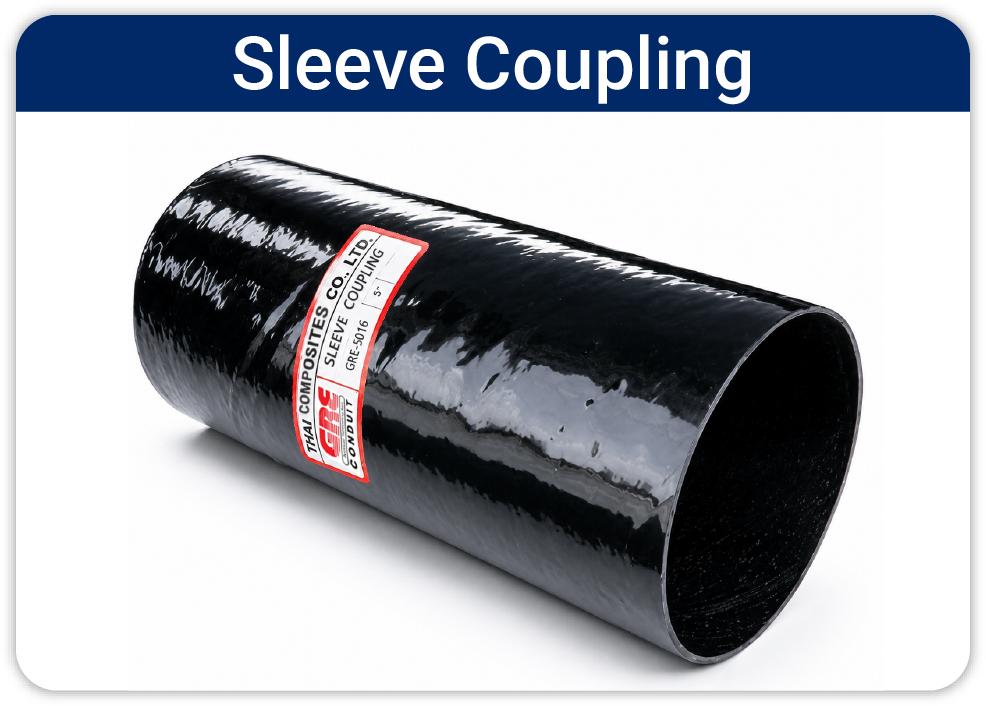

Fitting HW Type

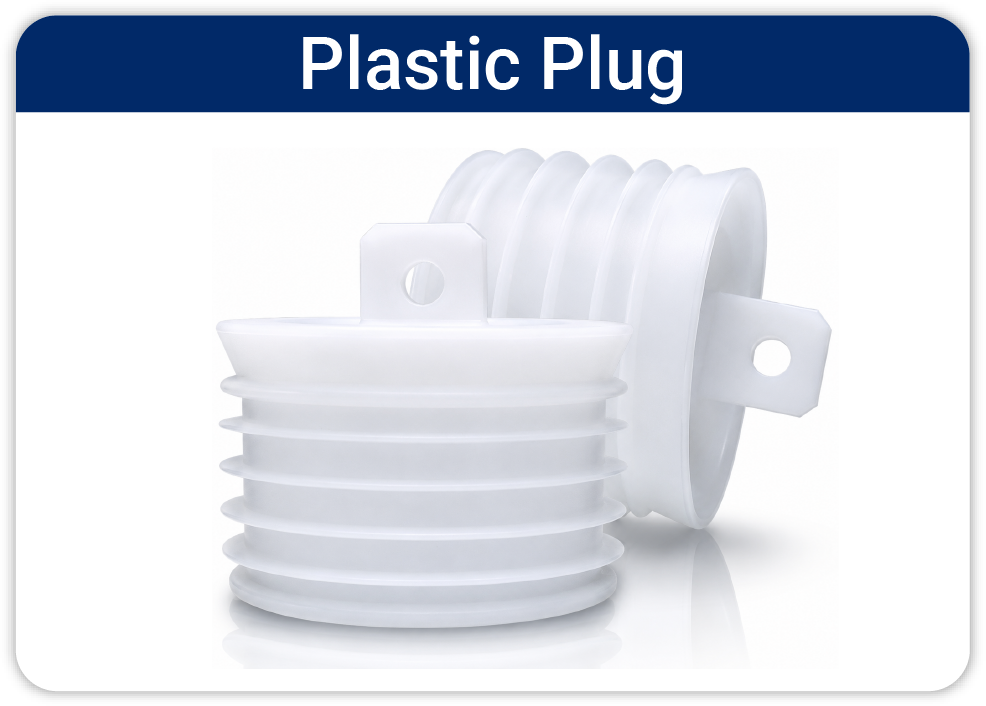

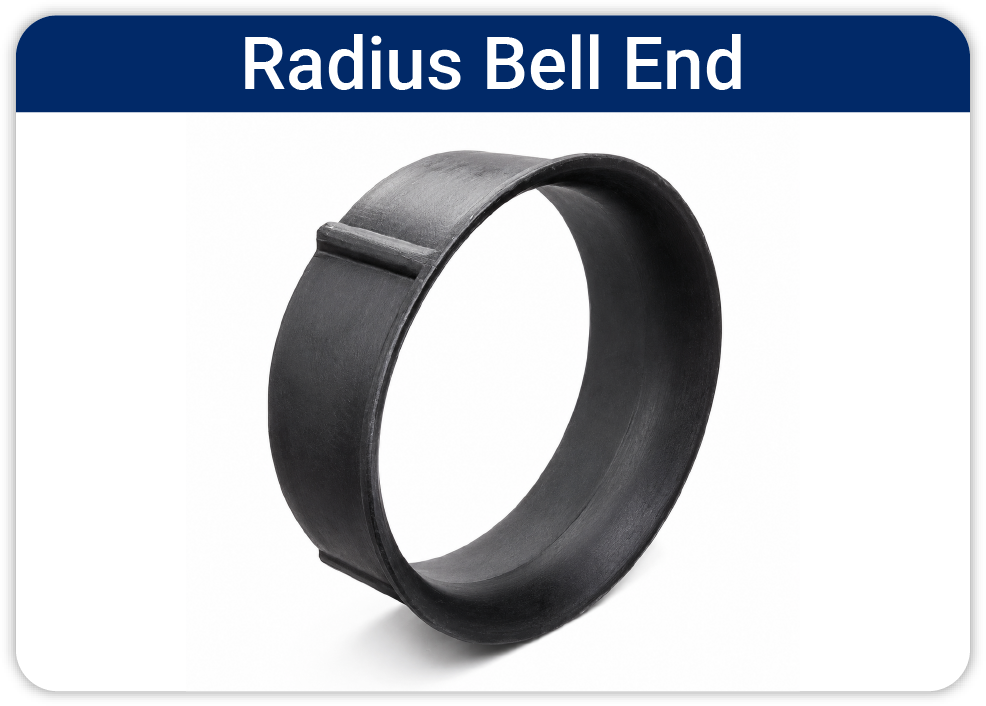

Accessories
Typical application areas
Engineered for essential cable routes.
RTRC conduit is designed for underground, concrete-encased and exposed infrastructure where corrosion resistance and installation performance matter.
Concrete Encasement
Duct-bank routes for utility and infrastructure projects.
Direct Burial
Lightweight, corrosion-resistant underground cable protection.
Pipe Jacking
Transitions from underground cable routes to elevated systems.
Above Ground
Routes where thermal movement, supports and access are important.
DESIGNED FOR THESE APPLICATIONS
Built for Demanding Electrical Infrastructure.
RTRC conduit systems provide reliable cable protection in environments where corrosion resistance, electrical insulation, high strength, and long-term durability are essential.
RAILWAY
AIRPORT
TUNNEL
DATA CENTER
Why choose Thai Composites
Integrated experience from product design to after-sales support.
The source page emphasizes long-term FRP engineering, integrated manufacturing, in-house testing and infrastructure-project experience.
