TANK

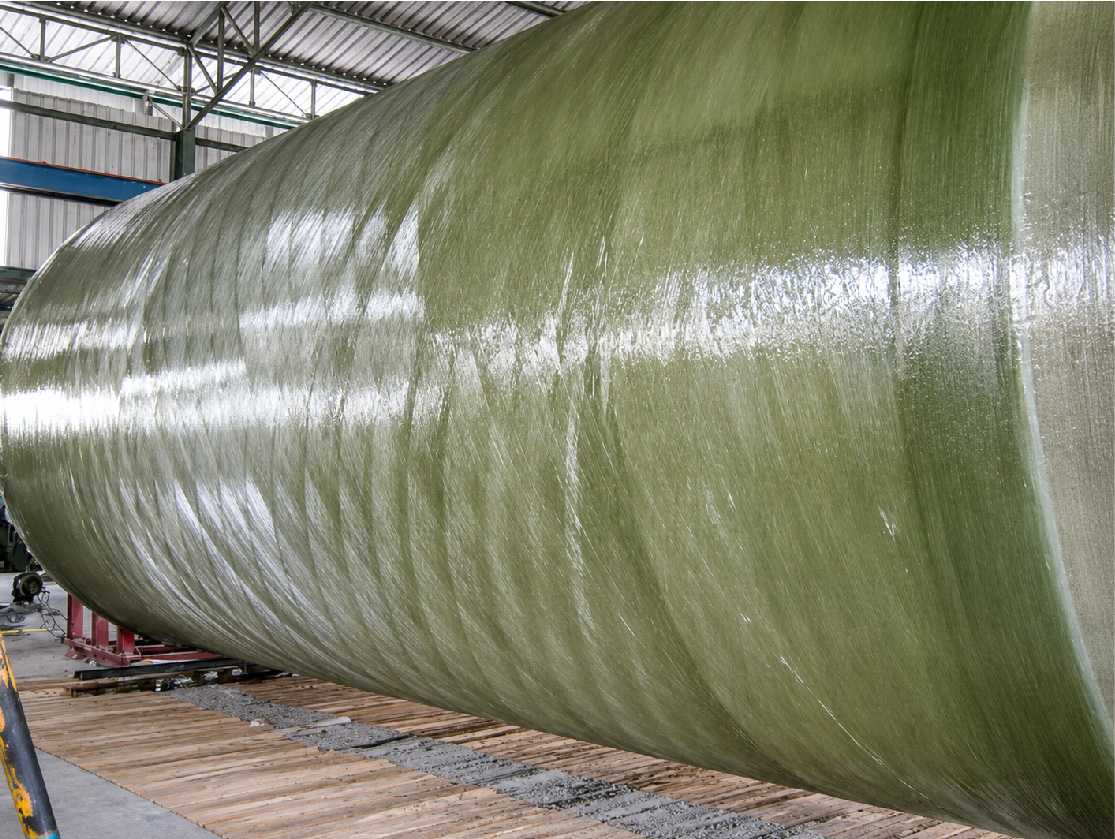

FRP Tank is engineered with high quality fiberglass reinforced plastic using advanced filament winding technology for superior strength,
corrosion resistance and long service life in demanding industrial applications.
TANK
Engineered for the safe and reliable storage of water, chemicals, and industrial process fluids, our FRP Storage Tanks provide outstanding corrosion resistance, lightweight construction, and long-term structural integrity. Designed and manufactured to international standards, each tank is customized to meet specific operating conditions, ensuring maximum performance and service life in demanding industrial environments.
Strength and Durability
Corrosion Resistance
Chemical Resistance
Ultraviolet Protection
Light Weight
Long System Life
Production Process of FRP Tank
Filament Wound, Contact Molded, Hand Lay-Up, Spray-Up
FRP tanks can be manufactured by multiple advanced processes to meet different design, size, and application requirements.
Each method is performed under controlled conditions to ensure consistent quality and long-service durability.

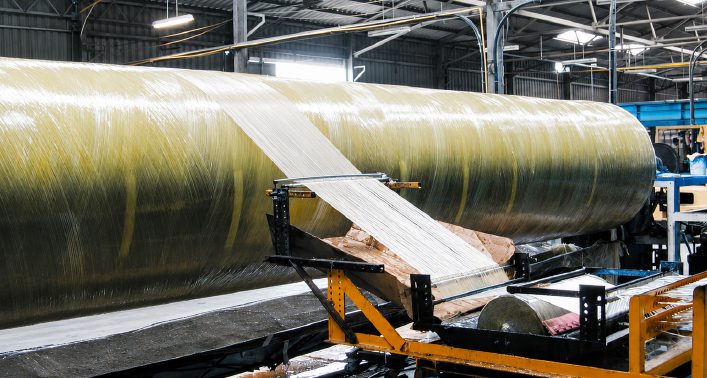

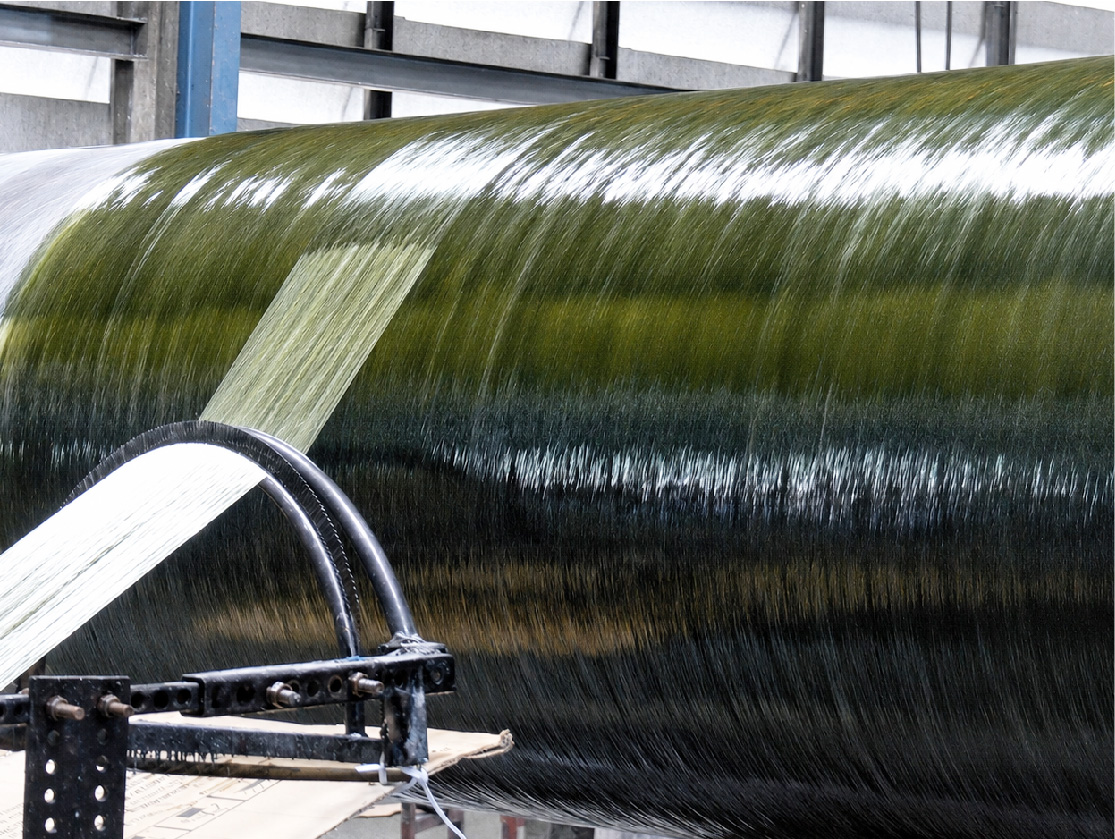

Filament Winding Process
FRP tanks are produced by winding continuous fiberglass roving that is soaked in resin around a revolving mandrel.
Fiber orientation and feeding are precisely controlled by an automated system to ensure uniform laminate structure and consistent quality.

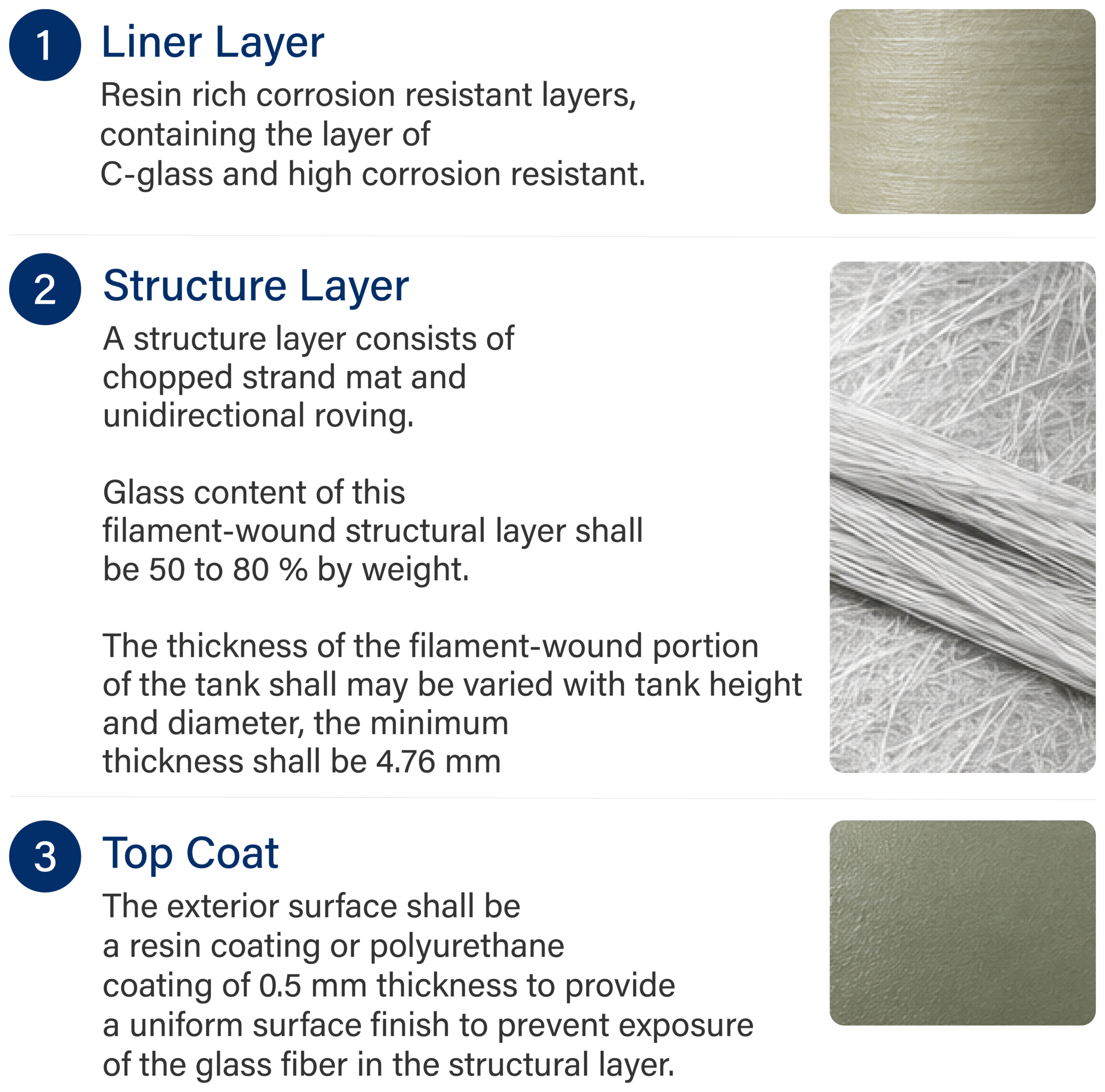

The Structure of Tank
The laminate construction of tank consists of 3 layers.

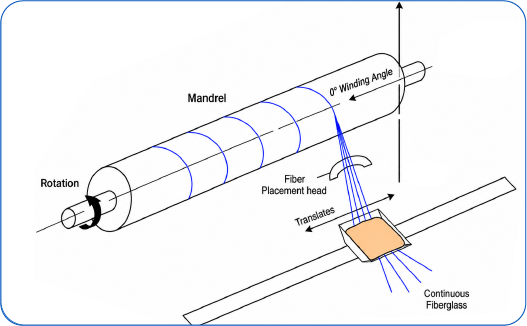

Typical Winding Diagram

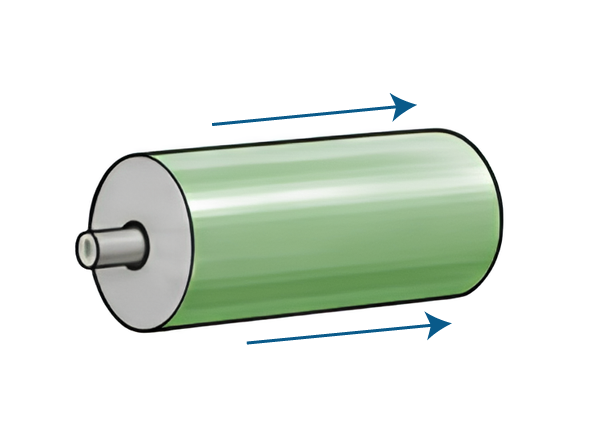

Filament Winding Process Flow
Fiberglass roving is wound on the mandrel with controlled angles.
The laminate is cured to achieve required strength and integrity.
The cured tank is removed from the mandrel.

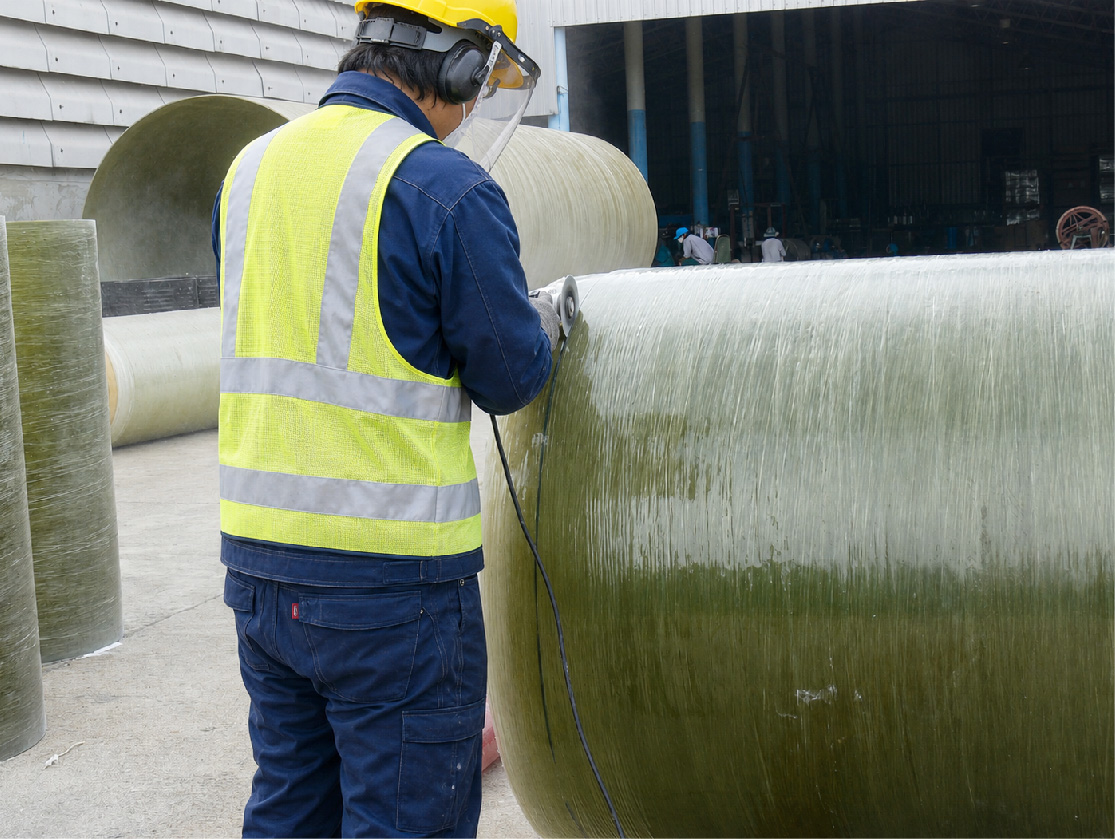

Ends and openings are cut to specified size and configuration.

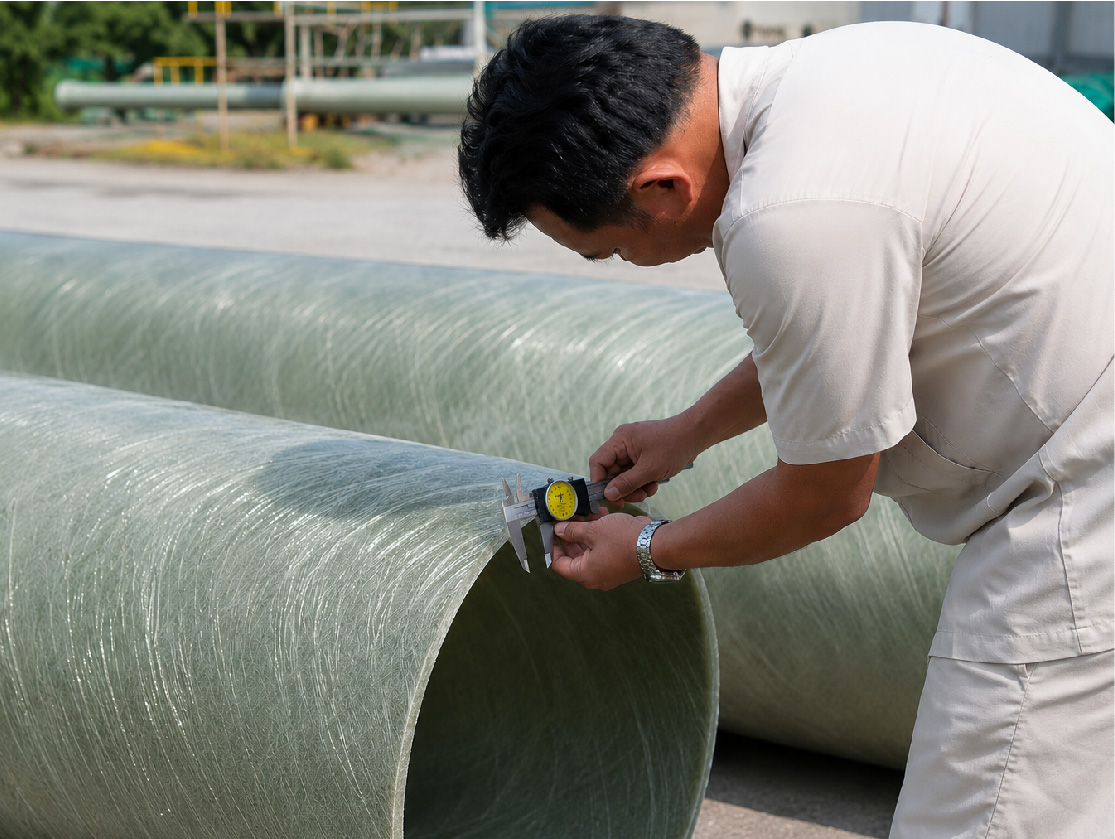

Components are inspected for quality and dimensional accuracy.

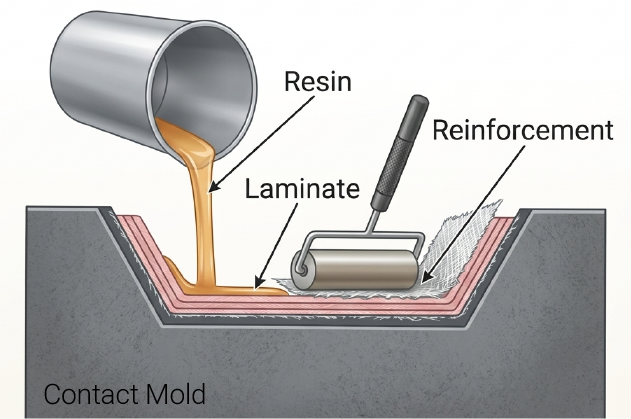

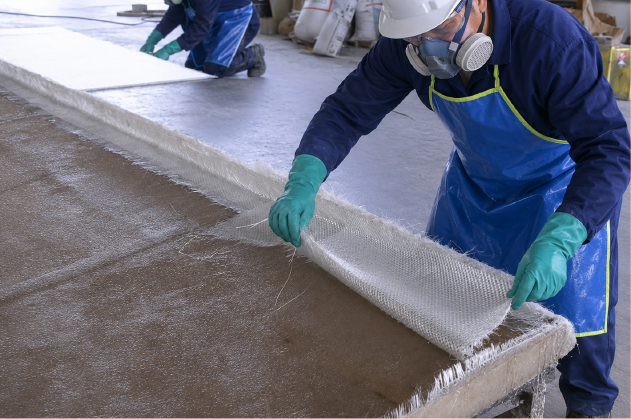

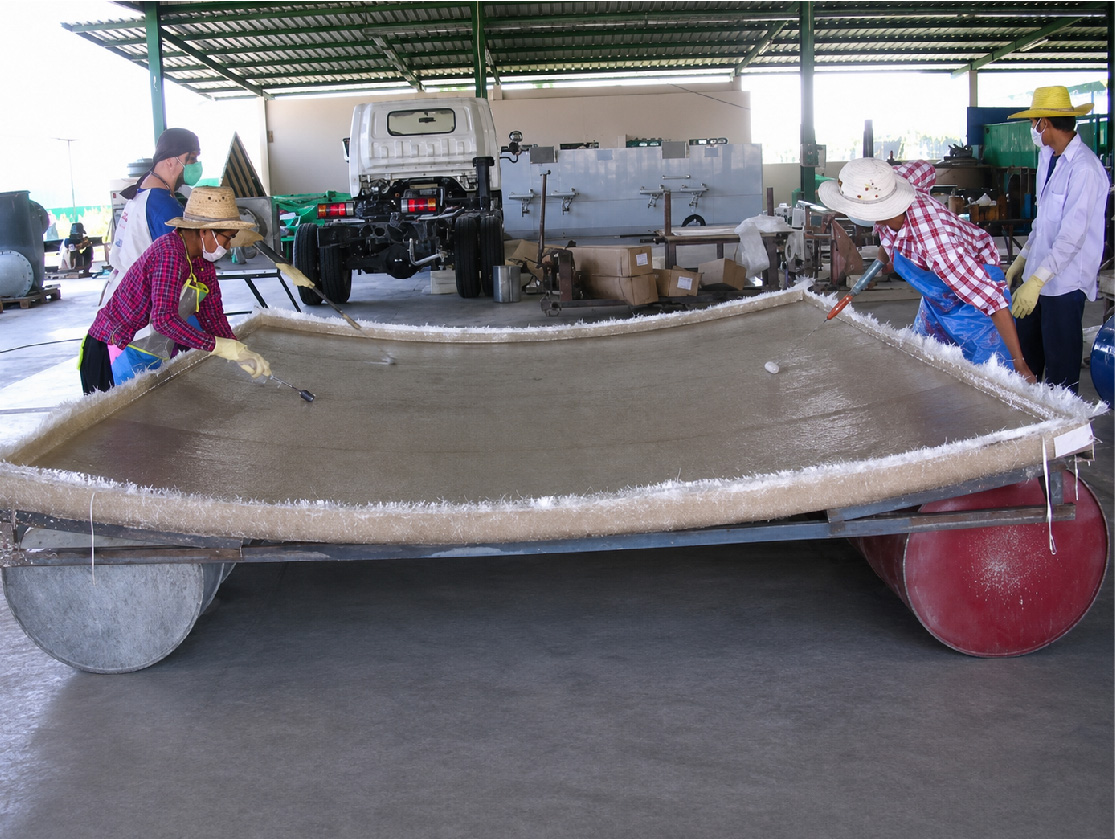

Contact Molded / Hand Lay-Up Method
In this method, reinforcement (fiberglass) is placed into a contact mold and impregnated with resin by hand lay-up.
The laminate is consolidated to remove air and ensure proper wet-out, forming a strong and durable FRP structure.

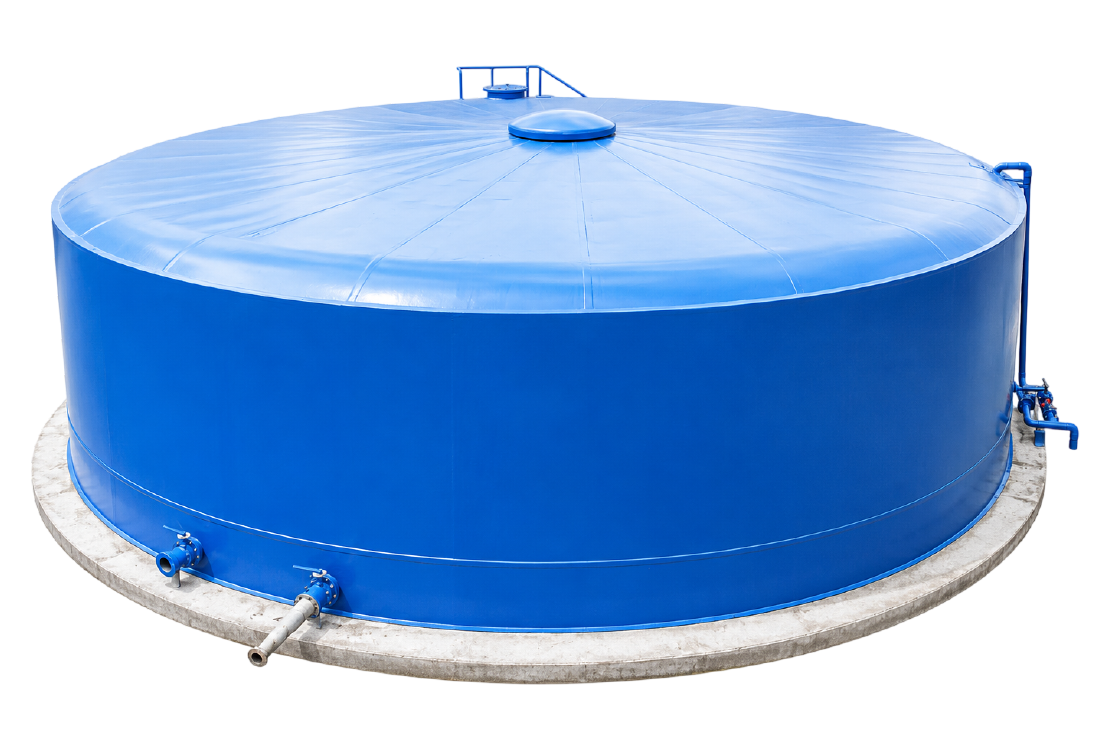

FRP Storage Tank
FRP Storage Tank is designed for the storage of water, wastewater, seawater, and corrosive chemicals in industrial, municipal, and infrastructure applications. Manufactured using advanced composite materials, the tank provides superior corrosion resistance, lightweight construction, and long service life compared with conventional steel or concrete tanks.

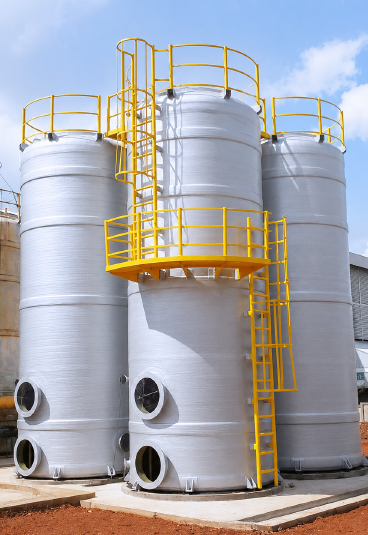

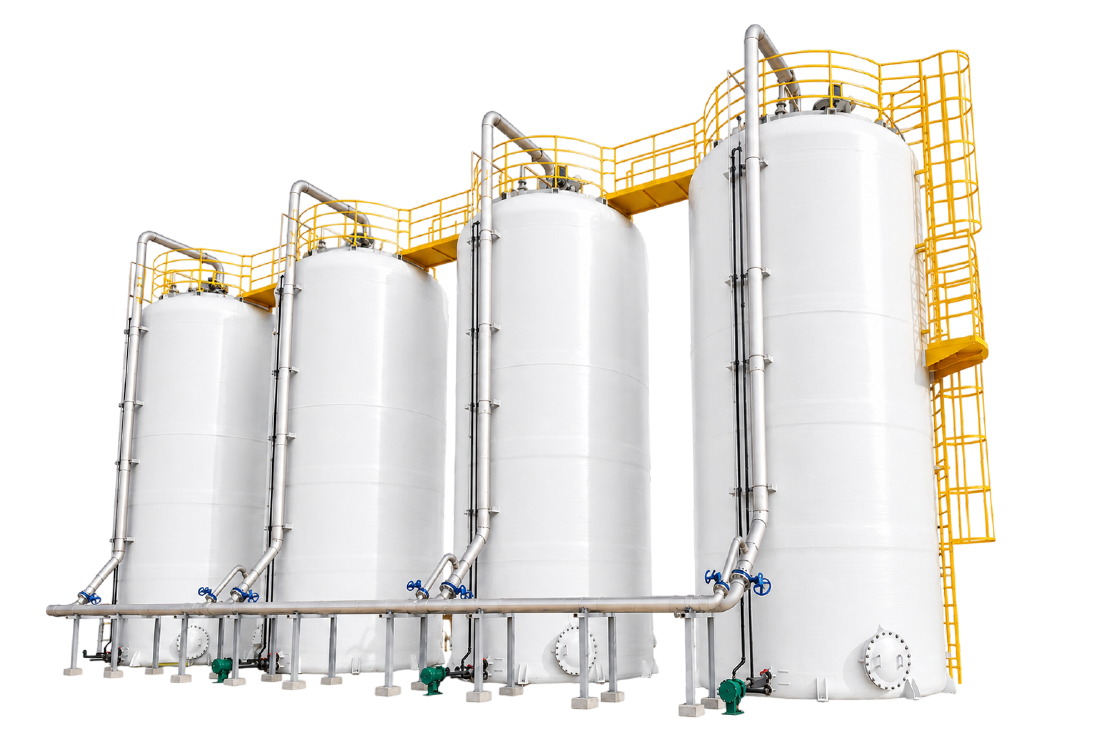

FRP Scrubber Tank
FRP Scrubber Tank is engineered for gas treatment and air pollution control systems. The equipment removes acidic gases, odors, and airborne contaminants while providing exceptional resistance against highly corrosive chemical environments.

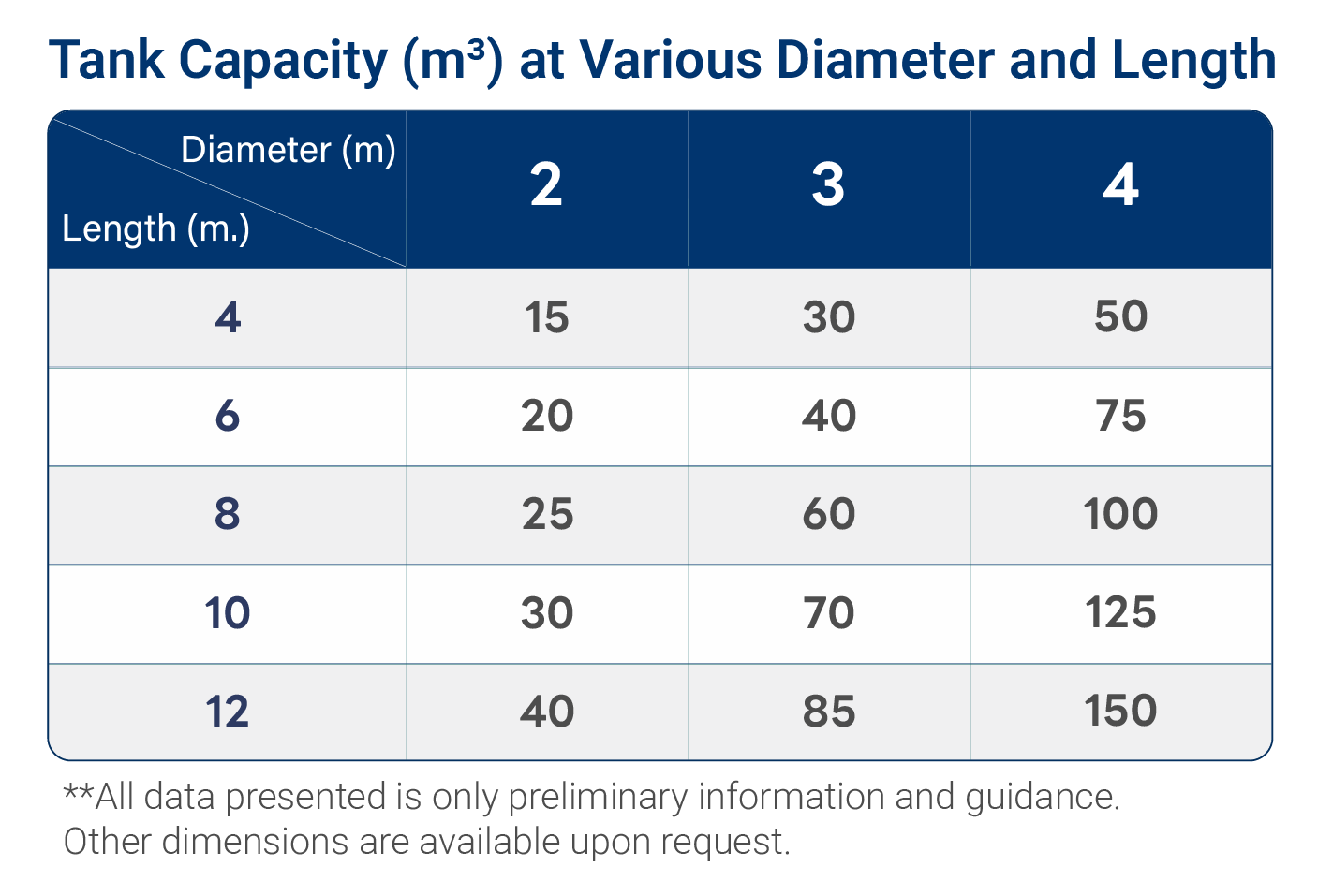

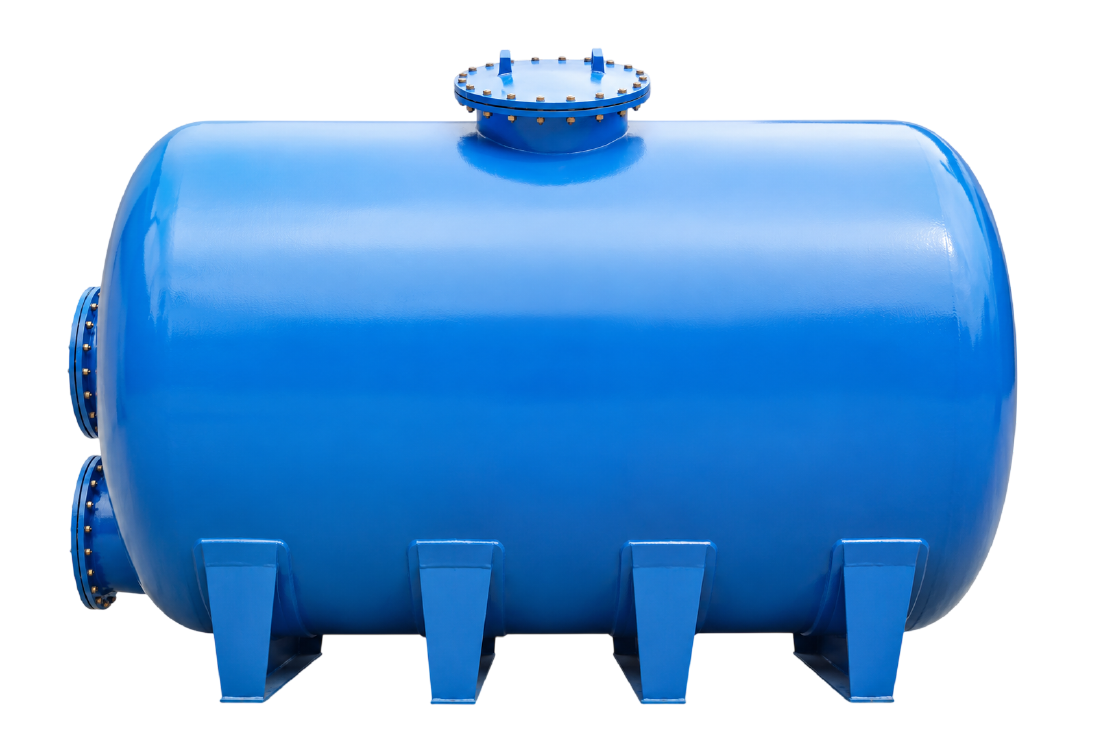

FRP Horizontal Tank
FRP Horizontal Tanks are designed for above-ground storage and process applications where installation height is limited. The horizontal configuration offers excellent stability and ease of transportation.

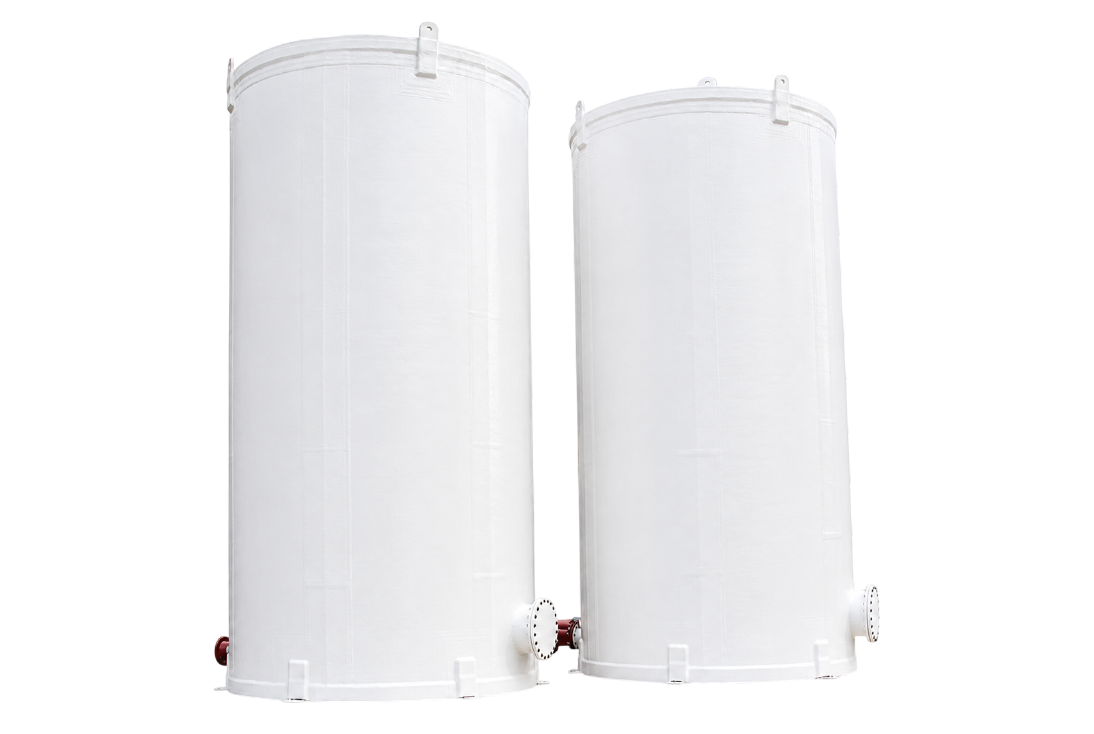

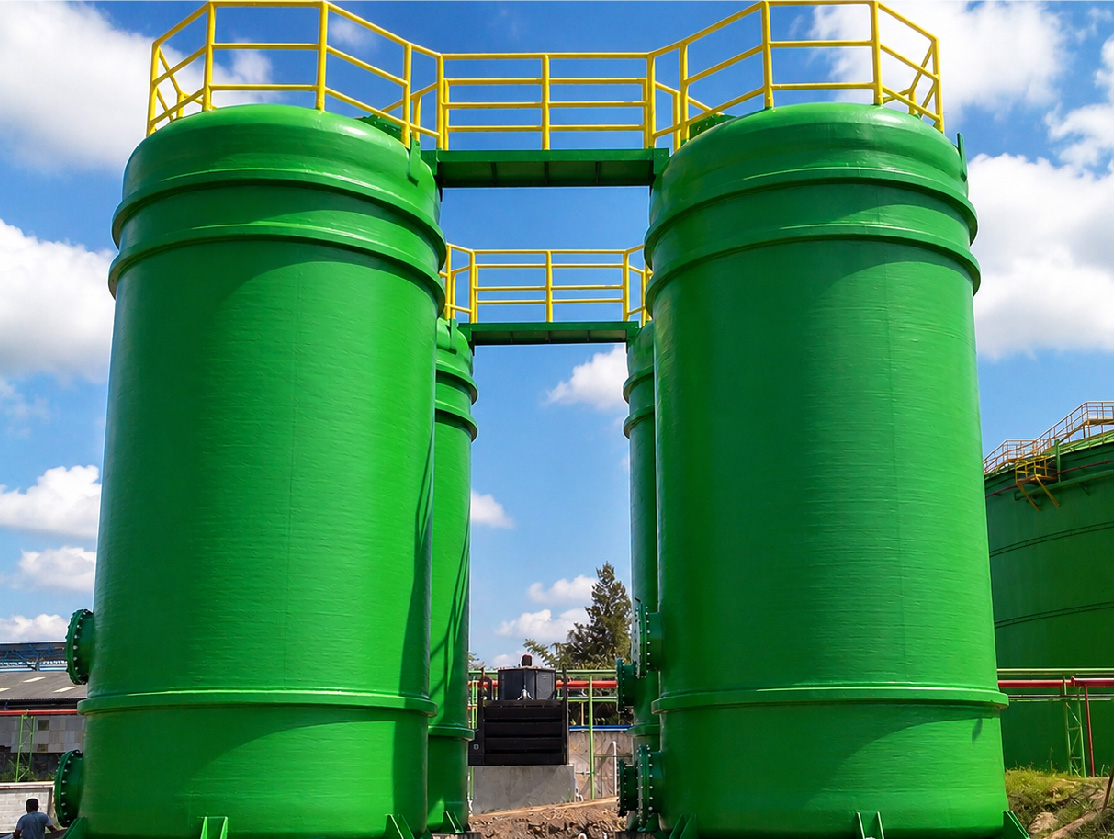

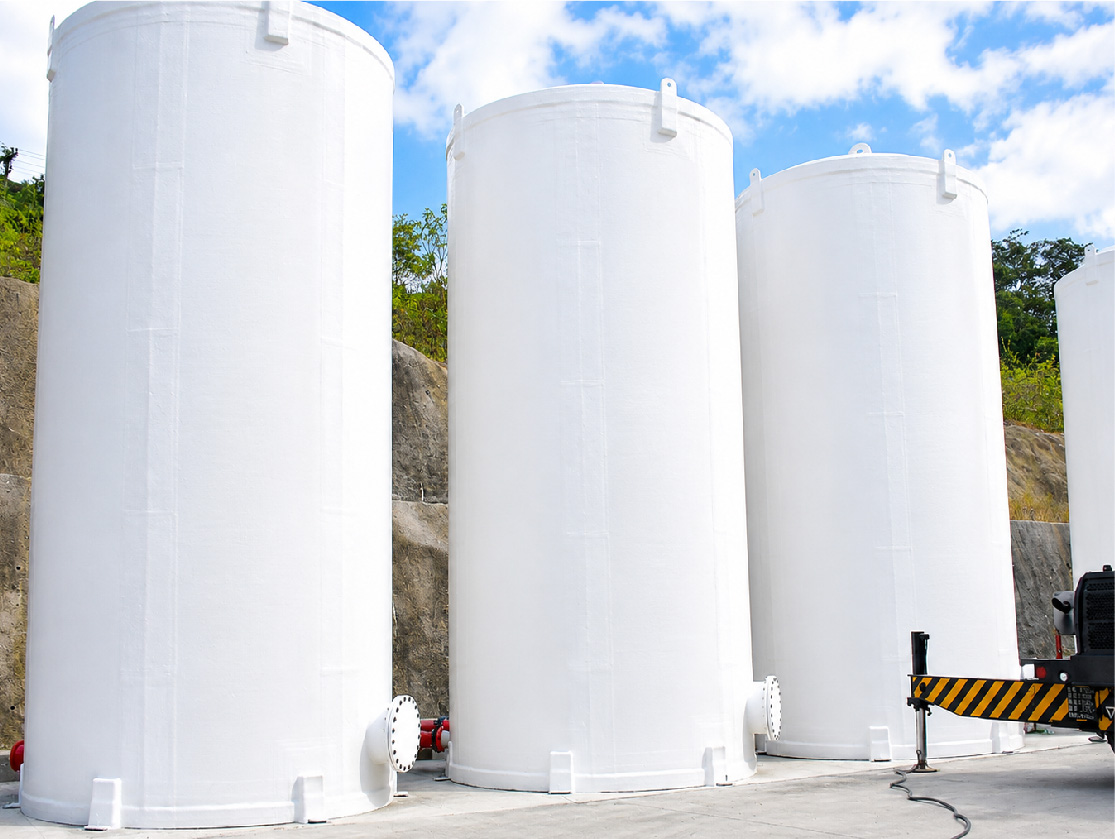

FRP Vertical Tank
FRP Vertical Tanks provide efficient storage solutions with minimal footprint. They are widely used in water treatment, chemical processing, and industrial manufacturing facilities.

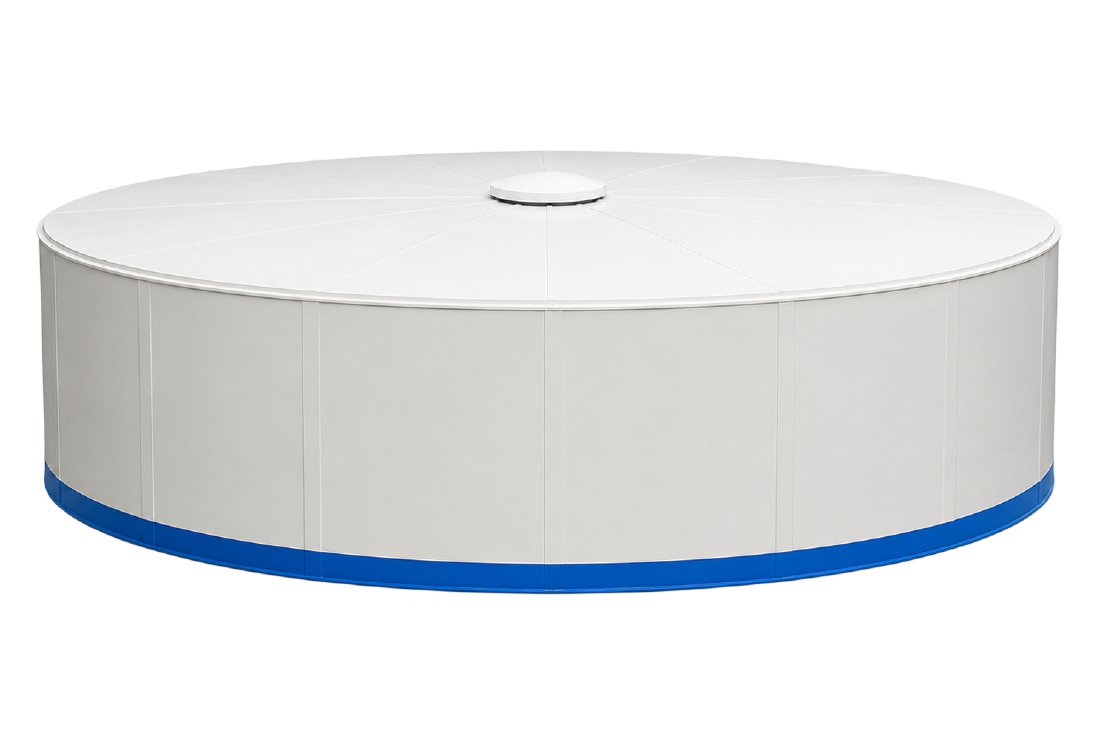

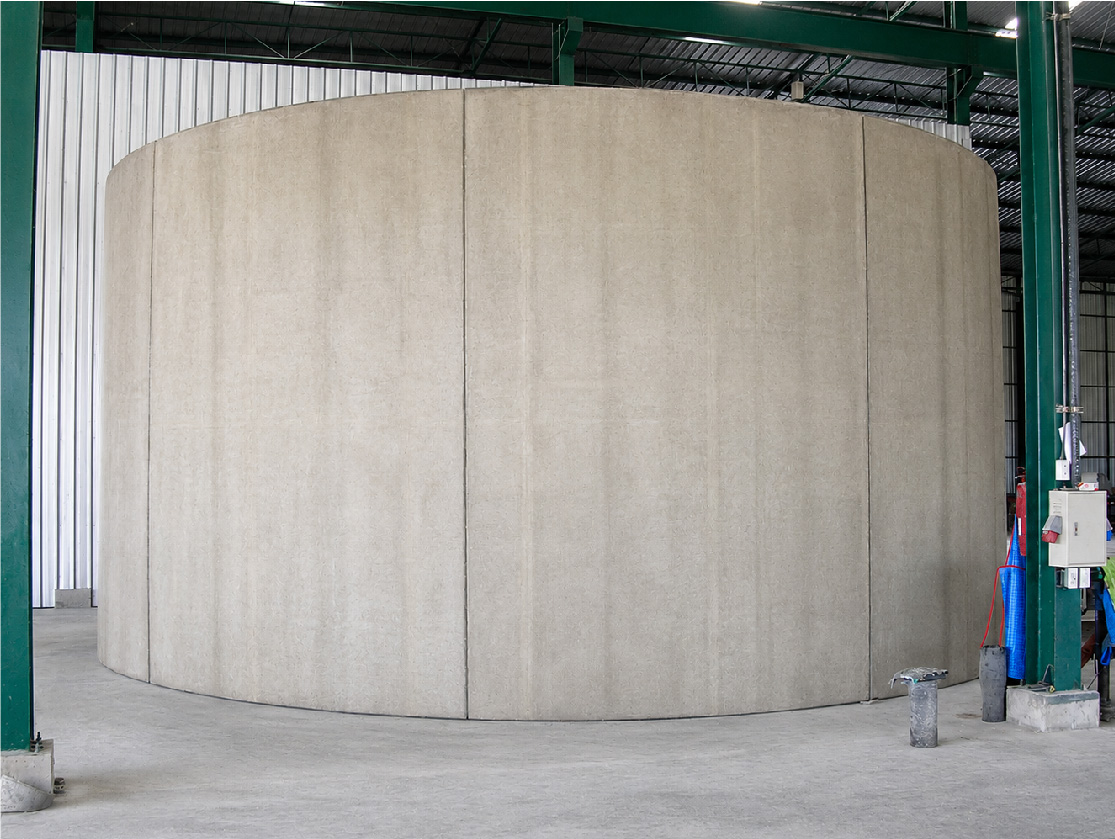

FRP Knock Down Tank
FRP Knock-Down Tanks are modular storage systems designed for large-capacity applications where transportation of a complete tank is impractical. Panels are manufactured at the factory and assembled on-site.

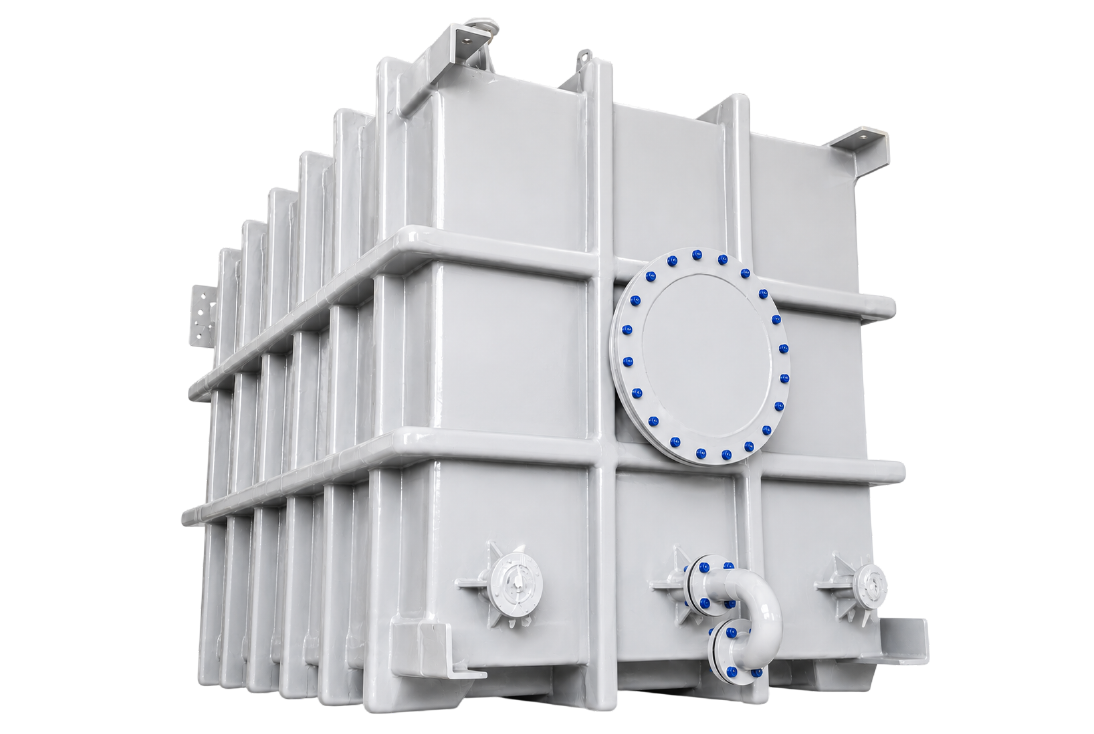

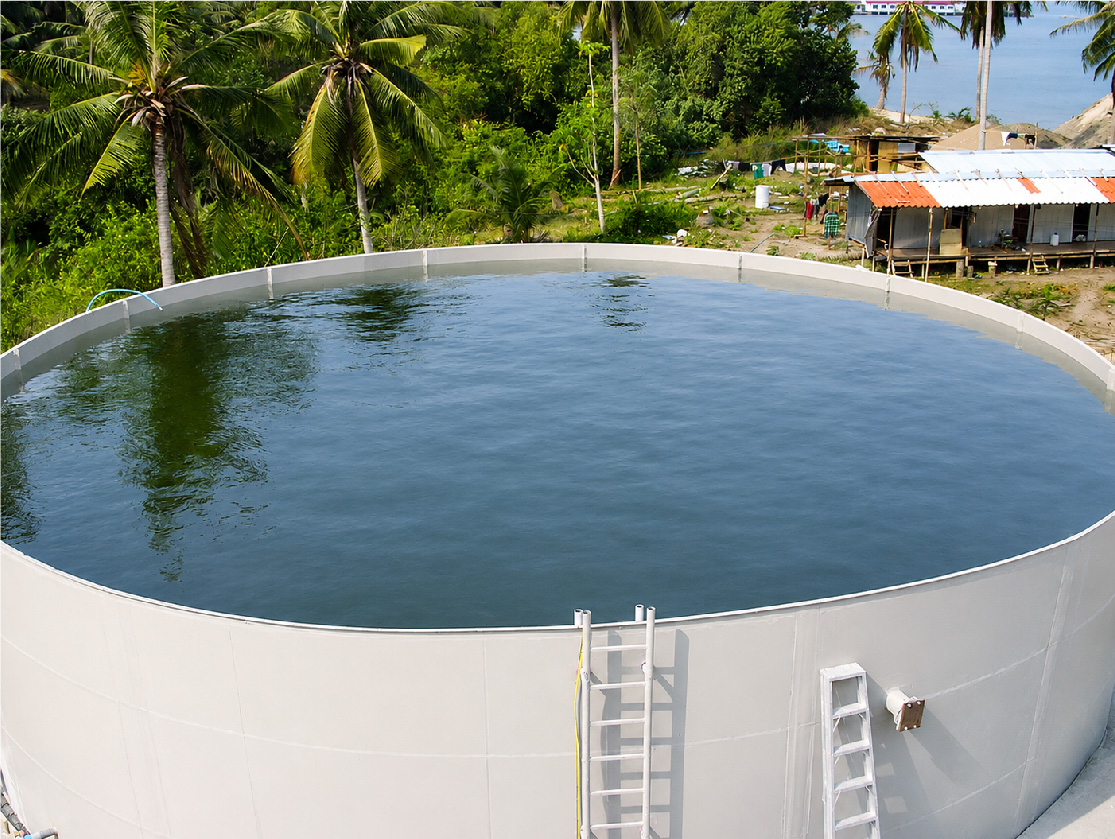

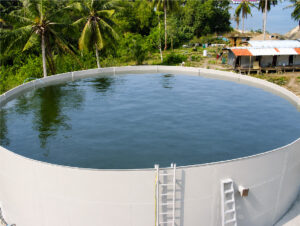

FRP Fresh Water Tank
FRP Fresh Water Tanks are designed for the storage of potable water, treated water, and utility water. Manufactured using corrosion-resistant composite materials, these tanks provide hygienic and maintenance-free operation.

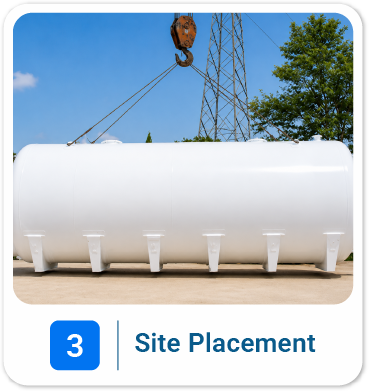

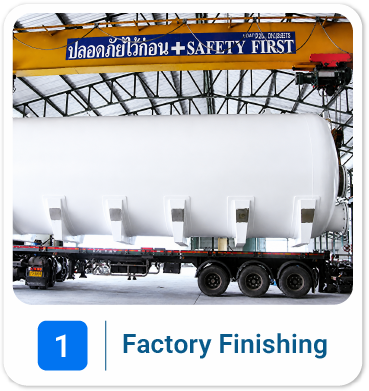

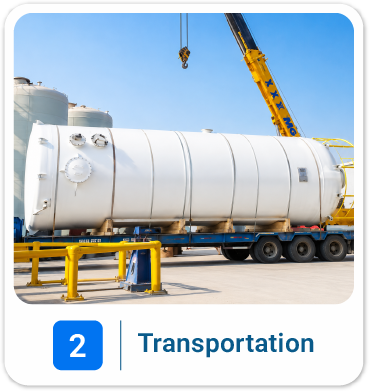

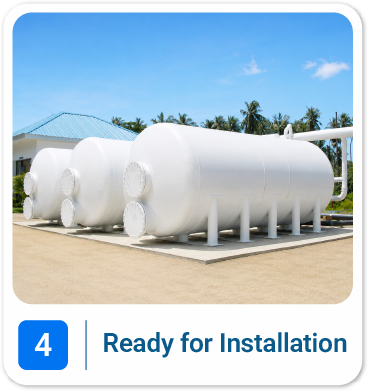

For Tanks with a Diameter Less Than 4 Meters
The tank is factory-finished and delivered ready for site installation. Fast Installation ⏱️ Finished in 15–30 Days.

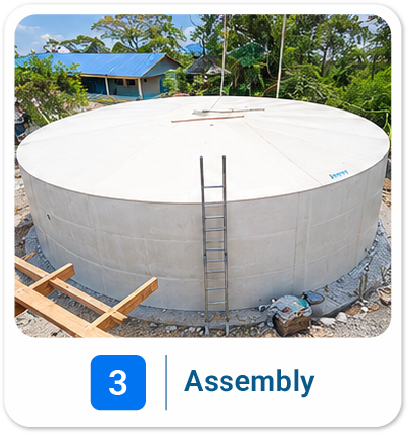

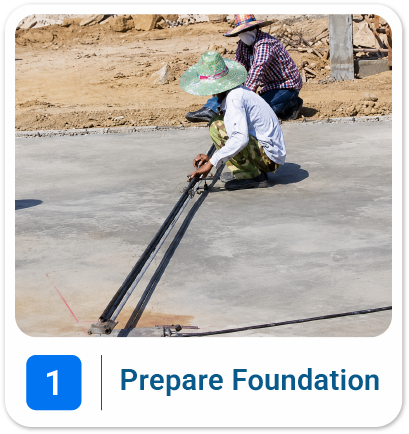

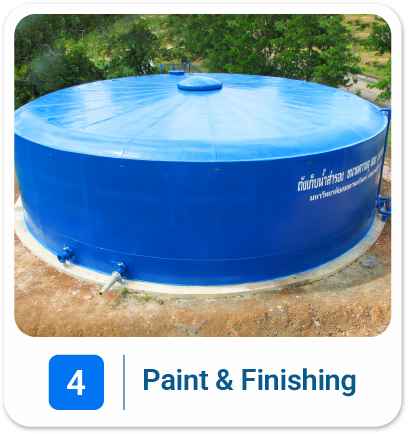

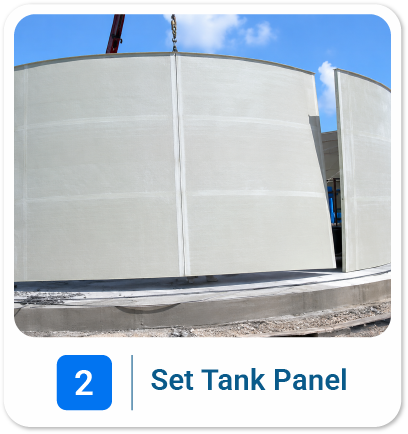

For Tanks with a Diameter Larger Than 4 Meters
Tank panels are assembled on site for large-diameter installations. Fast Installation ⏱️ Finished in 30–45 Days.
Compliance & Standards
Our FRP Tank are designed and tested in accordance with internationally recognized standards to ensure the highest level of safety, quality, and reliability in every installation.
Dimension
ASTM D3567
Visual Inspection
TIS 435
Tensile Property
ASTM D638 / ASTM D2290

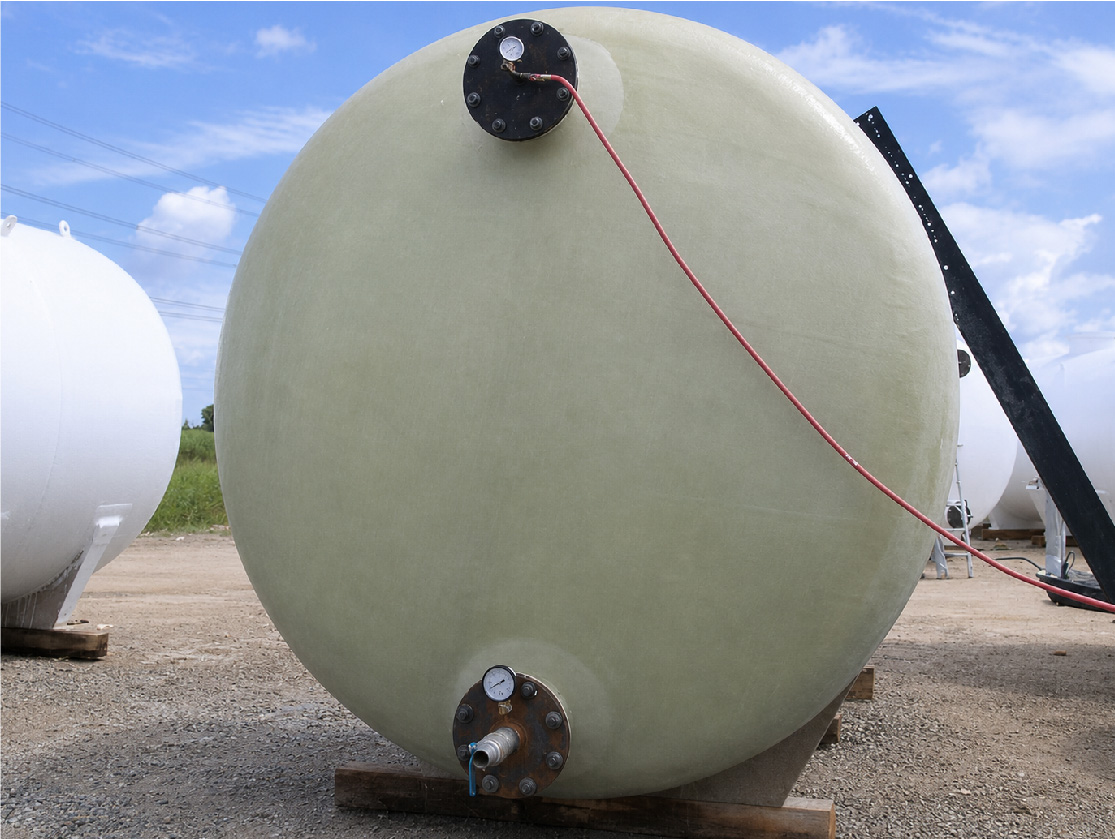

Leakage Test
TIS 435/ AWWA D120
Flexure Property
ASTM 790
Glass Content
ASTM D2584
DESIGNED FOR THESE APPLICATIONS
Engineered for Reliable Liquid Storage.
FRP tanks provide reliable containment for water, chemicals, and industrial liquids where corrosion resistance, structural durability, low maintenance, and long service life are essential.
Chemical Processing
Water / Wastewater Treatment
Air Pollution
Pharmaceutical
Why choose Thai Composites
Engineered FRP Tank Solutions From Design And Manufacturing To Installation And After-Sales Support.
Thai Composites provides engineered FRP tank solutions for chemical storage, water treatment and industrial processing. Each tank is designed and manufactured to meet specific operating conditions, capacity and project requirements.
